Priority Encoder

Introduction

A priority encoder is a circuit or algorithm that compresses multiple binary inputs into a smaller number of outputs. The output of a priority encoder is the binary representation of the index of the most significant activated line, starting from zero. They are often used to control interrupt requests by acting on the highest priority interrupt input.

A 4 to 2 priority encoder has 4 inputs : Y3, Y2, Y1 & Y0 and 2 outputs : A1 & A0. Here, the input, Y3 has the highest priority, whereas the input, Y0 has the lowest priority. In this case, even if more than one input is ‘1’ at the same time, the output will be the (binary) code corresponding to the input, which is having higher priority.

Truth Table

Inputs Outputs
Y3 Y2 Y1 Y0 A1 A0
0 0 0 0 x x
0 0 0 1 0 0
0 0 1 x 0 1
0 1 x x 1 0
1 x x x 1 1

From the above truth table we can infer that:

  • A0 is
    assign A0 = Y2(bar).Y1+Y3;
  • A1 is
    assign A1 = Y2+Y3;

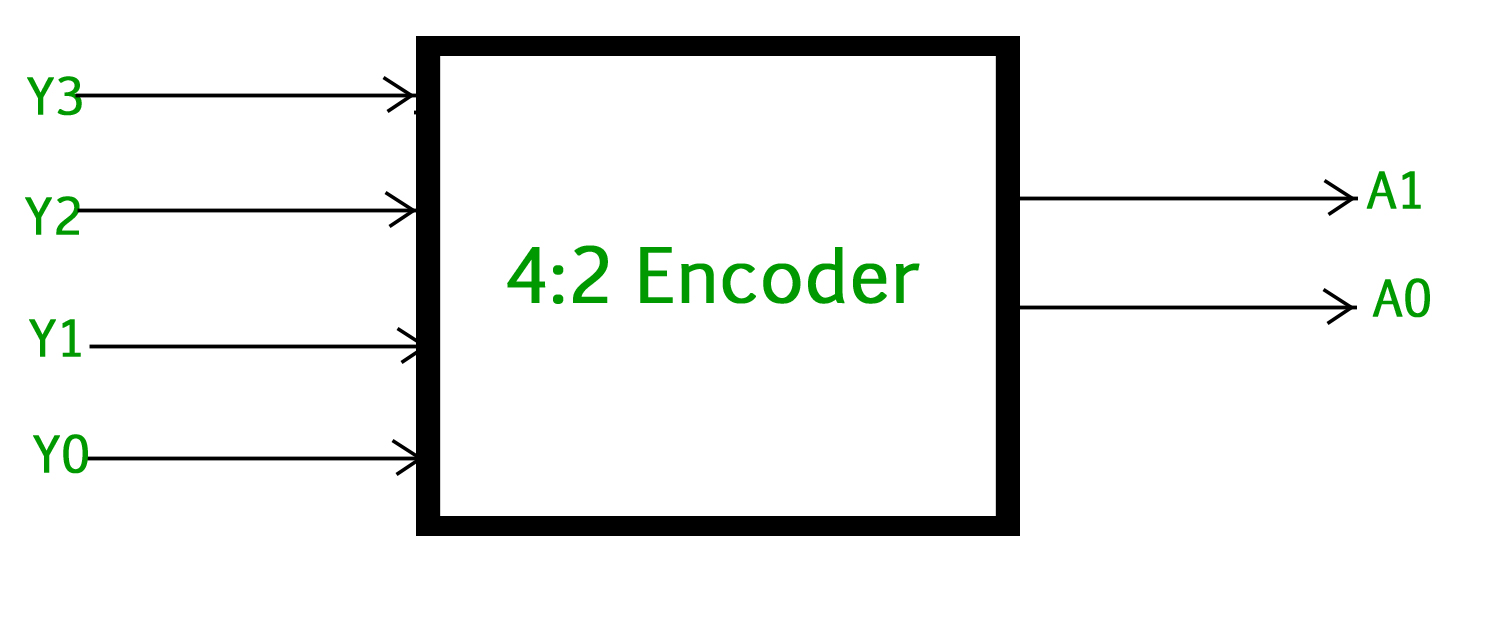

Schematic of priority encoder

Encoder-4x2

IMAGE SOURCE - GFG

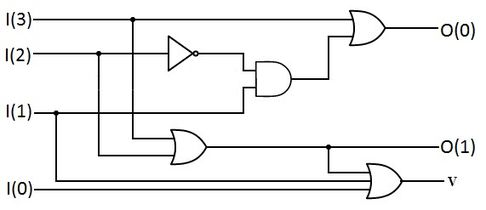

Realization of priority encoder

Realization

IMAGE SOURCE - Wikipedia
