捣鼓2天拉 ,为啥 doris cdc 就是没同步成功数据完全按照文档来的呀有大佬吗 #11453

ChewJ404 · 2022-08-03T02:57:58Z

ChewJ404
Aug 3, 2022

配置环境 The environment

flink:1.14.5-scala_2.12-java8
Doris 1.1
flink-doris-connector-1.14_2.12/1.1.0

操作步骤

doris 建表 doris create table
源表

CREATE TABLE `user` (
    `id` bigint(20) NOT NULL COMMENT "用户id",
    `name` varchar(50) NOT NULL COMMENT "用户昵称"
) ENGINE=OLAP
UNIQUE KEY(`id`)
COMMENT "OLAP"
DISTRIBUTED BY HASH(`id`) BUCKETS 1
PROPERTIES (
  "replication_allocation" = "tag.location.default: 1",
  "in_memory" = "false",
  "storage_format" = "V2"
);

sink表

CREATE TABLE `user_sink` (
    `id` bigint(20) NOT NULL COMMENT "用户id",
    `name` varchar(50) NOT NULL COMMENT "用户昵称"
) ENGINE=OLAP
UNIQUE KEY(`id`)
COMMENT "OLAP"
DISTRIBUTED BY HASH(`id`) BUCKETS 1
PROPERTIES (
  "replication_allocation" = "tag.location.default: 1",
  "in_memory" = "false",
  "storage_format" = "V2"
)

源表插入数据

INSERT INTO `dataease`.`user` (`id`, `name`) VALUES (1, 'aaaa');
INSERT INTO `dataease`.`user` (`id`, `name`) VALUES (2, 'bbbb');

创建 flink-sql 任务 crate flink-sql task
创建 resource

CREATE TABLE flink_doris_source (
    `id` BIGINT,
    `name` STRING
) WITH (
    'connector' = 'doris',
    'fenodes' = '192.168.12.222:8030',
    'table.identifier' = 'dataease.user',
    'username' = 'root',
    'password' = '123456'
);

在flink-sql 中查询能查询到源表数据 2条'
select * from flink_doris_source;
创建 sink

CREATE TABLE flink_doris_sink (
    `id` BIGINT,
    `name` STRING
) WITH (
    'connector' = 'doris',
    'fenodes' = '192.168.12.222:8030',
    'table.identifier' = 'dataease.user_sink',
    'username' = 'root',
    'password' = '123456',
    'sink.label-prefix' = 'doris_label'
);

执行同步 submit job
INSERT INTO flink_doris_sink select id,name from flink_doris_source;

结果

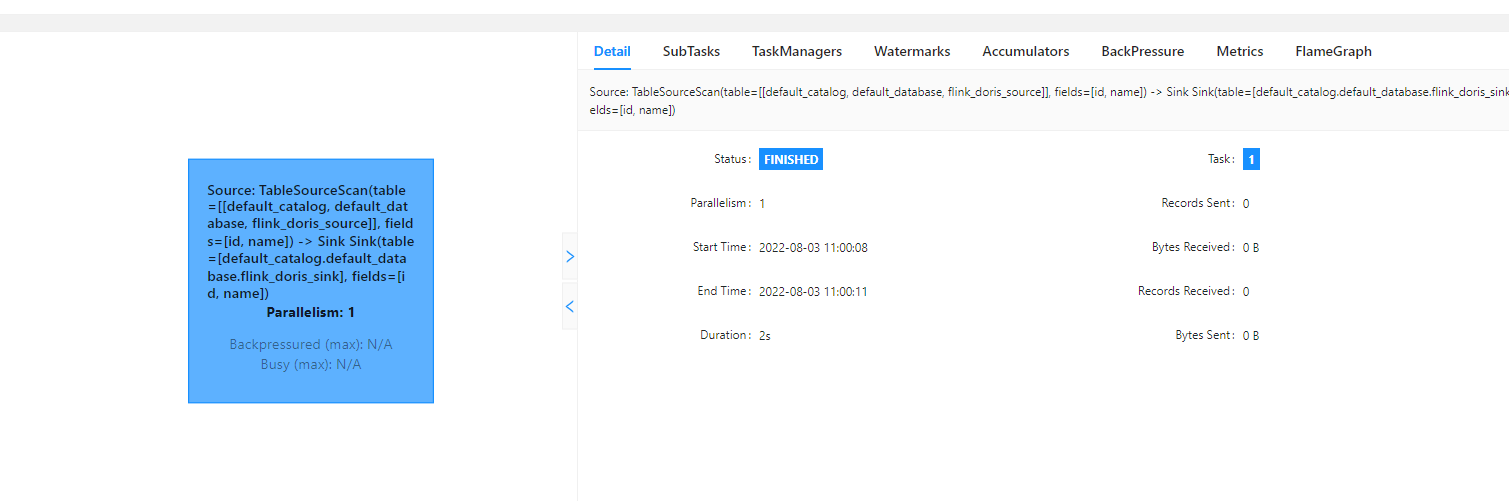

数据没有同步成功查看 user_sink 内还是空的 ,flink job 里面也没有报错 ,想知道如何排查问题呢

Answered by hf200012

Aug 5, 2022

SET execution.checkpointing.interval = 10s;

View full answer

ChewJ404 · 2022-08-03T03:03:27Z

ChewJ404
Aug 3, 2022
Author

调整了还是没数据

2022-08-03 04:00:59,036 INFO  org.apache.flink.runtime.taskexecutor.TaskExecutor           [] - Receive slot request 4f19c9acad182240e234de3ffbb05215 for job 35cb94c0780d0fbfedb6e140be479fca from resource manager with leader id 00000000000000000000000000000000.
2022-08-03 04:00:59,041 INFO  org.apache.flink.runtime.taskexecutor.TaskExecutor           [] - Allocated slot for 4f19c9acad182240e234de3ffbb05215.
2022-08-03 04:00:59,041 INFO  org.apache.flink.runtime.taskexecutor.DefaultJobLeaderService [] - Add job 35cb94c0780d0fbfedb6e140be479fca for job leader monitoring.
2022-08-03 04:00:59,042 INFO  org.apache.flink.runtime.taskexecutor.DefaultJobLeaderService [] - Try to register at job manager akka.tcp://flink@jobmanager:6123/user/rpc/jobmanager_4 with leader id 00000000-0000-0000-0000-000000000000.
2022-08-03 04:00:59,060 INFO  org.apache.flink.runtime.taskexecutor.DefaultJobLeaderService [] - Resolved JobManager address, beginning registration
2022-08-03 04:00:59,075 INFO  org.apache.flink.runtime.taskexecutor.DefaultJobLeaderService [] - Successful registration at job manager akka.tcp://flink@jobmanager:6123/user/rpc/jobmanager_4 for job 35cb94c0780d0fbfedb6e140be479fca.
2022-08-03 04:00:59,075 INFO  org.apache.flink.runtime.taskexecutor.TaskExecutor           [] - Establish JobManager connection for job 35cb94c0780d0fbfedb6e140be479fca.
2022-08-03 04:00:59,076 INFO  org.apache.flink.runtime.taskexecutor.TaskExecutor           [] - Offer reserved slots to the leader of job 35cb94c0780d0fbfedb6e140be479fca.
2022-08-03 04:00:59,087 INFO  org.apache.flink.runtime.taskexecutor.slot.TaskSlotTableImpl [] - Activate slot 4f19c9acad182240e234de3ffbb05215.
2022-08-03 04:00:59,092 INFO  org.apache.flink.runtime.state.changelog.StateChangelogStorageLoader [] - Creating a changelog storage with name 'memory'.
2022-08-03 04:00:59,094 INFO  org.apache.flink.runtime.taskexecutor.TaskExecutor           [] - Received task Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) -> Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) (1/1)#0 (7737ffd503218c491afb14963167f59d), deploy into slot with allocation id 4f19c9acad182240e234de3ffbb05215.
2022-08-03 04:00:59,095 INFO  org.apache.flink.runtime.taskexecutor.slot.TaskSlotTableImpl [] - Activate slot 4f19c9acad182240e234de3ffbb05215.
2022-08-03 04:00:59,095 INFO  org.apache.flink.runtime.taskmanager.Task                    [] - Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) -> Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) (1/1)#0 (7737ffd503218c491afb14963167f59d) switched from CREATED to DEPLOYING.
2022-08-03 04:00:59,101 INFO  org.apache.flink.runtime.taskmanager.Task                    [] - Loading JAR files for task Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) -> Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) (1/1)#0 (7737ffd503218c491afb14963167f59d) [DEPLOYING].
2022-08-03 04:00:59,113 INFO  org.apache.flink.runtime.blob.BlobClient                     [] - Downloading 35cb94c0780d0fbfedb6e140be479fca/p-e9435fe7360ee6d1ec55633df93ff2ad28e2e3d8-003eb988521fd98326f5fc13c7dd1d9b from jobmanager/172.19.0.2:6124
2022-08-03 04:00:59,131 INFO  org.apache.flink.runtime.blob.BlobClient                     [] - Downloading 35cb94c0780d0fbfedb6e140be479fca/p-2644d6d3c055fdc8327bfeadfac58623ae6163f5-498ca1d16929e516eef66ac1f9d05523 from jobmanager/172.19.0.2:6124
2022-08-03 04:00:59,322 INFO  org.apache.flink.streaming.runtime.tasks.StreamTask          [] - No state backend has been configured, using default (HashMap) org.apache.flink.runtime.state.hashmap.HashMapStateBackend@6b02323c
2022-08-03 04:00:59,322 INFO  org.apache.flink.runtime.state.StateBackendLoader            [] - State backend loader loads the state backend as HashMapStateBackend
2022-08-03 04:00:59,322 INFO  org.apache.flink.streaming.runtime.tasks.StreamTask          [] - Checkpoint storage is set to 'jobmanager'
2022-08-03 04:00:59,323 INFO  org.apache.flink.runtime.taskmanager.Task                    [] - Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) -> Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) (1/1)#0 (7737ffd503218c491afb14963167f59d) switched from DEPLOYING to INITIALIZING.
2022-08-03 04:00:59,343 WARN  org.apache.flink.metrics.MetricGroup                         [] - The operator name Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) exceeded the 80 characters length limit and was truncated.
2022-08-03 04:00:59,350 WARN  org.apache.flink.metrics.MetricGroup                         [] - The operator name Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) exceeded the 80 characters length limit and was truncated.
2022-08-03 04:00:59,356 INFO  org.apache.doris.flink.sink.writer.DorisWriter               [] - restore checkpointId 0
2022-08-03 04:00:59,357 INFO  org.apache.doris.flink.sink.writer.DorisWriter               [] - labelPrefix doris_label2
2022-08-03 04:00:59,359 INFO  org.apache.doris.flink.sink.writer.DorisWriter               [] - Send request to Doris FE 'http://192.168.12.222:8030/api/backends?is_alive=true' with user 'root'.
2022-08-03 04:00:59,375 INFO  org.apache.doris.flink.sink.writer.DorisWriter               [] - Backend Info:{"backends":[{"ip":"192.168.12.222","http_port":8040,"is_alive":true}]}
2022-08-03 04:00:59,381 INFO  org.apache.doris.flink.sink.writer.RecordBuffer              [] - init RecordBuffer capacity 262144, count 3
2022-08-03 04:00:59,385 INFO  org.apache.doris.flink.sink.writer.DorisStreamLoad           [] - abort for labelSuffix doris_label2_0. start chkId 1.
2022-08-03 04:00:59,406 INFO  org.apache.doris.flink.sink.writer.DorisStreamLoad           [] - load Result {
    "TxnId": 40,
    "Label": "doris_label2_0_1",
    "TwoPhaseCommit": "true",
    "Status": "Success",
    "Message": "OK",
    "NumberTotalRows": 0,
    "NumberLoadedRows": 0,
    "NumberFilteredRows": 0,
    "NumberUnselectedRows": 0,
    "LoadBytes": 0,
    "LoadTimeMs": 8,
    "BeginTxnTimeMs": 0,
    "StreamLoadPutTimeMs": 1,
    "ReadDataTimeMs": 0,
    "WriteDataTimeMs": 2,
    "CommitAndPublishTimeMs": 0
}

2022-08-03 04:00:59,406 INFO  org.apache.doris.flink.sink.writer.DorisStreamLoad           [] - abort 40 for check label doris_label2_0_1.
2022-08-03 04:00:59,531 INFO  org.apache.doris.flink.sink.writer.DorisStreamLoad           [] - abort for labelSuffix doris_label2_0 finished
2022-08-03 04:00:59,531 INFO  org.apache.doris.flink.sink.writer.RecordBuffer              [] - start buffer data, read queue size 0, write queue size 3
2022-08-03 04:00:59,531 INFO  org.apache.doris.flink.sink.writer.DorisStreamLoad           [] - stream load started for doris_label2_0_1
2022-08-03 04:00:59,532 INFO  org.apache.doris.flink.sink.writer.DorisStreamLoad           [] - start execute load
2022-08-03 04:00:59,535 INFO  org.apache.flink.runtime.taskmanager.Task                    [] - Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) -> Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) (1/1)#0 (7737ffd503218c491afb14963167f59d) switched from INITIALIZING to RUNNING.
2022-08-03 04:00:59,541 INFO  org.apache.flink.connector.base.source.reader.SourceReaderBase [] - Adding split(s) to reader: [DorisSourceSplit: dataease.user,be=192.168.12.222:9060,tablets=[10048]]
2022-08-03 04:00:59,542 INFO  org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher [] - Starting split fetcher 0
2022-08-03 04:00:59,597 INFO  org.apache.doris.flink.backend.BackendClient                 [] - CloseScanner to Doris BE 'Doris BE{host='192.168.12.222', port=9060}' success.
2022-08-03 04:00:59,597 INFO  org.apache.doris.flink.backend.BackendClient                 [] - Closed a connection to Doris BE{host='192.168.12.222', port=9060}.
2022-08-03 04:00:59,597 INFO  org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher [] - Finished reading from splits [192.168.12.222:9060]
2022-08-03 04:00:59,597 INFO  org.apache.flink.connector.base.source.reader.SourceReaderBase [] - Finished reading split(s) [192.168.12.222:9060]
2022-08-03 04:00:59,598 INFO  org.apache.flink.connector.base.source.reader.fetcher.SplitFetcherManager [] - Closing splitFetcher 0 because it is idle.
2022-08-03 04:00:59,598 INFO  org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher [] - Shutting down split fetcher 0
2022-08-03 04:00:59,598 INFO  org.apache.flink.connector.base.source.reader.fetcher.SplitFetcher [] - Split fetcher 0 exited.
2022-08-03 04:00:59,602 INFO  org.apache.flink.connector.base.source.reader.SourceReaderBase [] - Reader received NoMoreSplits event.
2022-08-03 04:00:59,603 INFO  org.apache.doris.flink.sink.writer.DorisStreamLoad           [] - stream load stopped.
2022-08-03 04:00:59,721 INFO  org.apache.doris.flink.sink.writer.DorisStreamLoad           [] - load Result {
    "TxnId": 41,
    "Label": "doris_label2_0_1",
    "TwoPhaseCommit": "true",
    "Status": "Success",
    "Message": "OK",
    "NumberTotalRows": 2,
    "NumberLoadedRows": 2,
    "NumberFilteredRows": 0,
    "NumberUnselectedRows": 0,
    "LoadBytes": 16,
    "LoadTimeMs": 182,
    "BeginTxnTimeMs": 0,
    "StreamLoadPutTimeMs": 1,
    "ReadDataTimeMs": 0,
    "WriteDataTimeMs": 71,
    "CommitAndPublishTimeMs": 0
}

2022-08-03 04:00:59,723 INFO  org.apache.flink.connector.base.source.reader.SourceReaderBase [] - Closing Source Reader.
2022-08-03 04:00:59,724 INFO  org.apache.flink.runtime.taskmanager.Task                    [] - Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) -> Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) (1/1)#0 (7737ffd503218c491afb14963167f59d) switched from RUNNING to FINISHED.
2022-08-03 04:00:59,724 INFO  org.apache.flink.runtime.taskmanager.Task                    [] - Freeing task resources for Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) -> Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) (1/1)#0 (7737ffd503218c491afb14963167f59d).
2022-08-03 04:00:59,725 INFO  org.apache.flink.runtime.taskexecutor.TaskExecutor           [] - Un-registering task and sending final execution state FINISHED to JobManager for task Source: TableSourceScan(table=[[default_catalog, default_database, flink_doris_source]], fields=[id, name]) -> Sink Sink(table=[default_catalog.default_database.flink_doris_sink], fields=[id, name]) (1/1)#0 7737ffd503218c491afb14963167f59d.
2022-08-03 04:00:59,748 INFO  org.apache.flink.runtime.taskexecutor.slot.TaskSlotTableImpl [] - Free slot TaskSlot(index:2, state:ACTIVE, resource profile: ResourceProfile{cpuCores=1, taskHeapMemory=778.240mb (816043776 bytes), taskOffHeapMemory=0 bytes, managedMemory=604.160mb (633507685 bytes), networkMemory=102.400mb (107374182 bytes)}, allocationId: 4f19c9acad182240e234de3ffbb05215, jobId: 35cb94c0780d0fbfedb6e140be479fca).
2022-08-03 04:00:59,749 INFO  org.apache.flink.runtime.taskexecutor.DefaultJobLeaderService [] - Remove job 35cb94c0780d0fbfedb6e140be479fca from job leader monitoring.
2022-08-03 04:00:59,749 INFO  org.apache.flink.runtime.taskexecutor.TaskExecutor           [] - Close JobManager connection for job 35cb94c0780d0fbfedb6e140be479fca.

0 replies

JNSimba · 2022-08-03T10:22:47Z

JNSimba
Aug 3, 2022
Collaborator

Checkpoint is not enabled? You can refer to here https://mp.weixin.qq.com/s/ejDChH5ScUK4pSxo2EH_4w

1 reply

bb33chen Mar 12, 2026

Does the flink-doris-connector support scenarios where both the upstream and downstream are Doris?
（flink-doris-connector 支持上下游都是Doris的情况吗？）

keyuquan · 2022-08-03T11:21:03Z

keyuquan
Aug 3, 2022

要先设置 checkpoint，否则doris sink 不执行： SET 'execution.checkpointing.interval' = '10s';

0 replies

hf200012 · 2022-08-05T08:08:37Z

hf200012
Aug 5, 2022
Collaborator

SET execution.checkpointing.interval = 10s;

1 reply

bb33chen Mar 12, 2026

Does the flink-doris-connector support scenarios where both the upstream and downstream are Doris?
（flink-doris-connector 支持上下游都是Doris的情况吗？）

lu314401633 · 2023-05-26T07:49:35Z

lu314401633
May 26, 2023

没设置checkpoint interval，导致你执行完sql，任务就结束了

0 replies
