The Extension should be used for Mainframe COBOL and Assembler language. The extension has been developed to parse the Assembler Program and create the link with ASM program or COBOL program called. The Extension implements customer metrics using CAST Universal Analyzer.
The table below indicates the current version of the Extension and history of versions.
| Version | Date | Name |
|---|---|---|
| 1.2.1-funcrel | Nov 2025 | com.castsoftware.uc.asmzos.1.2.1-funcrel |
| 1.2.0-funcrel | removed | com.castsoftware.uc.asmzos.1.2.0-funcrel |
| 1.1.27 | Mar 2025 | com.castsoftware.uc.asmzos.1.1.27 |
| 1.1.26 | Nov 2024 | com.castsoftware.uc.asmzos.1.1.26 |
| 1.1.25 | July 2023 | com.castsoftware.uc.asmzos.1.1.25 |
| 1.1.24 | July 2023 | com.castsoftware.uc.asmzos.1.1.24 |
| 1.1.23 | May 2023 | com.castsoftware.uc.asmzos.1.1.23 |
| 1.1.22 | May 2023 | com.castsoftware.uc.asmzos.1.1.22 |
| 1.1.21 | May 2023 | com.castsoftware.uc.asmzos.1.1.21 |
| 1.1.20 | May 2023 | com.castsoftware.uc.asmzos.1.1.20 |
| 1.1.19 | Apr 2023 | com.castsoftware.uc.asmzos.1.1.19 |
| 1.1.18 | Mar 2023 | com.castsoftware.uc.asmzos.1.1.18 |
| 1.1.17 | Jan 2023 | com.castsoftware.uc.asmzos.1.1.17 |
| 1.1.16 | Jan 2023 | com.castsoftware.uc.asmzos.1.1.16 |
| 1.1.15 | Nov 2022 | com.castsoftware.uc.asmzos.1.1.15 |
| 1.1.14 | Nov 2022 | com.castsoftware.uc.asmzos.1.1.14 |
| 1.1.13 | Nov 2022 | com.castsoftware.uc.asmzos.1.1.13 |
| 1.1.12 | Oct 2022 | com.castsoftware.uc.asmzos.1.1.12 |
| 1.1.11 | Sep 2022 | com.castsoftware.uc.asmzos.1.1.11 |
| 1.1.10 | Nov 2021 | com.castsoftware.uc.asmzos.1.1.10 |
| 1.1.9 | Oct 2021 | com.castsoftware.uc.asmzos.1.1.9 |
| 1.1.8 | Oct 2021 | com.castsoftware.uc.asmzos.1.1.8 |
| 1.1.7 | Oct 2021 | com.castsoftware.uc.asmzos.1.1.7 |
| 1.1.6 | May 2021 | com.castsoftware.uc.asmzos.1.1.6 |
| 1.1.5 | Apr 2021 | com.castsoftware.uc.asmzos.1.1.5 |
| 1.1.4 | Apr 2021 | com.castsoftware.uc.asmzos.1.1.4 |
| 1.1.3 | Mar 2021 | com.castsoftware.uc.asmzos.1.1.3 |
| 1.1.2 | Feb 2021 | com.castsoftware.uc.asmzos.1.1.2 |
| 1.1.1 | Feb 2021 | com.castsoftware.uc.asmzos.1.1.1 |
| 1.1.0 | March 2019 | com.castsoftware.uc.asmzos.1.1.0 |
| 1.0.0 | Sep 2018 | com.castsoftware.uc.asmzos.1.0.0 |
-
Version 1.1.0 – Added proper link information.
-
Version 1.1.1 – Replaced Preprocessor tool with start_application.py.
-
Version 1.1.2 – JCL to Assembler and Cobol to Assemblers calls are supported
-
Version 1.1.3 – Calls from Assembler to Cobol via CALL, EXEC CICS LINK and XCTL is supported. Calls from assembler to ideal,pli procedure is supported
-
Version 1.1.4 – Updated pre processor script
-
Version 1.1.5 – Updated pre processor script
-
Version 1.1.6 – fixed bug
-
Version 1.1.7 – included MLC file extension
-
Version 1.1.8 – Fixed issue with Bookmark
-
Version 1.1.9 – Fixed issue with Bookmark
-
Version 1.1.10 – Minor Changes
-
Version 1.1.11 – Added support to Assembler Macro
-
Version 1.1.13 – Replaced .tmp files with .zip file
-
Version 1.1.14 Added dependency of com.castsoftware.labs.cobol.swcopy.update
-
Version 1.1.15 Created links between Assembler and DB Objects
-
Version 1.1.16 Source code will now be auto discovered in the console and AU is created.
-
Version 1.1.17 Dependency to Generic File discoverer is updated.
-
Version 1.1.18 Updated DMT Discoverer.
-
Version 1.1.19 create callLink between Cobol object and assembler object for case of EXEC CICS LOAD.
-
Version 1.1.20 Updated discoverer extension version in nuspec.
-
Version 1.1.21 Updated Language from "ASMZOS" to "Assembler".
-
Version 1.1.22 Fixed metamodel issue
Dependency to Generic File discoverer is updated. -
Version 1.1.23 Updated analyzer for change in language name
-
Version 1.1.24 upgraded api version
-
Version 1.1.25 Updated preprocessor
-
Version 1.1.26 commented out logging statments
-
Version 1.1.27 Added linux compatability
-
Version 1.2.0-funcrel
- Added Assembler SQL Query
- Added missing database objects
- Correction of a performance issue
-
Version 1.2.1-funcrel
- Various enhancements (to be detailled)
The Extension is covering the following use cases:
- Link Call from ASM Program to ASM Program or Cobol Program
| Techno | Function Point | Quality |
|---|---|---|
| zoS Assembler |  |
 |
The following table gives the list of CAST AIP configurations where the Extension has been implemented:
| CAST AIP Release | Has previously Worked | In version of extension |
|---|---|---|
| 8.3.29 | |
Current |
| 8.4.x | |
Current |
The Extension has been implemented in standard CAST AIP installation and platform, using Universal Analyzer Framework. It is comptibles with Mainframe Analyzers as well as any analyzer compatible with the program linking protocol (See Universal Linker)
Not available
The following table gives the complete list of technical prerequisites to be met before installing the Extension: The following table gives the complete list of technical prerequisites to be met before installing the Extension: An installation of any compatible release of CAST AIP (see table above)
The CAST Extension Downloader is provided along with the CAST Installation
This extension will be installed automatically when Console's Fast Scan detects the present of file extensions listed above.
The extension has been implemented with a pre-process step for Assembler source code . JCL to Assembler and Cobol to assembler calls are supported.
The Extension is extending technology coverage for CAST operations as below specified.

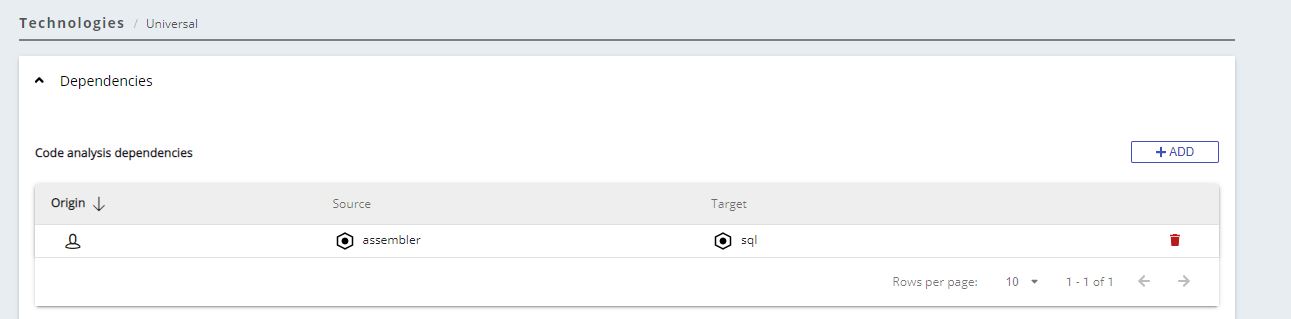

Add dependency between assembler AU to SQL AU (Only for versions 1.1.x).
Once the analysis has completed the following objects will be displayed in CAST Enlighten.

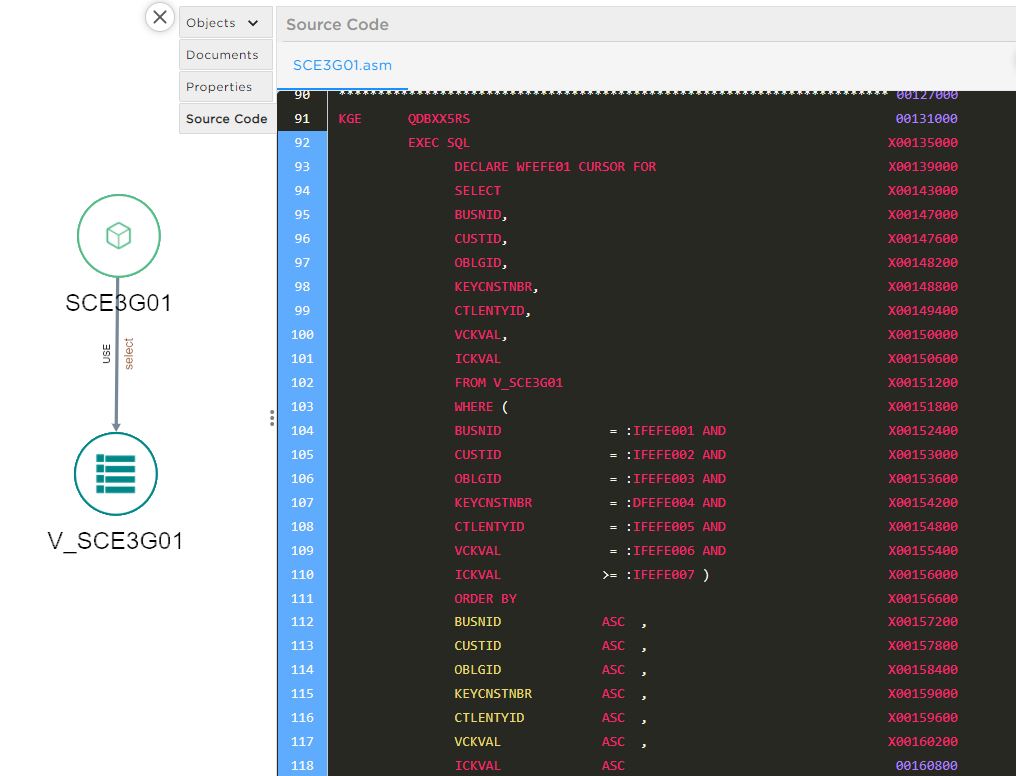

Link between assembler program and DB Objects.
Nothing specific.
No additional information is available
No additional information is available
