Verificação de Modelos Comportamentais UML Como um Serviço Habilitando a Aplicação de Métodos Formais Ocultos

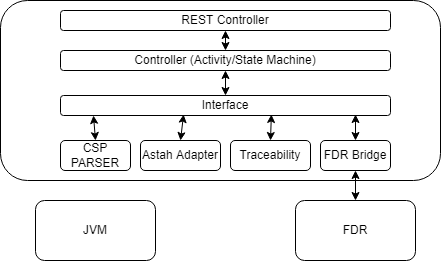

Flow

Setup

1. Install Java version 8
2. Clone this repository
3. Build the jar file from the project
4. Run the application with the .jar generated

The application will run by default on port 8080

🚩 Endpoints

/index - GET. Returns an HTML page with the front-end built for this project.

/getDiagrams - POST. Returns a JSON with the available diagrams in the submitted file.

This endpoint expects a file in the body of the request.

/validateAstahFile - POST. Returns an Astah file with the counter-example, if it exists.

This endpoint expects a file in the body of the request. The query parameters passed to it are validationType (determinism or deadlock) and diagramName.
