Swin Transformer

This project is an implementation of the paper "Swin Transformer: Hierarchical Vision Transformer using Shifted Windows". The Swin Transformer serves as a general-purpose backbone for computer vision tasks, effectively addressing the challenges of adapting Transformer models from language to vision.

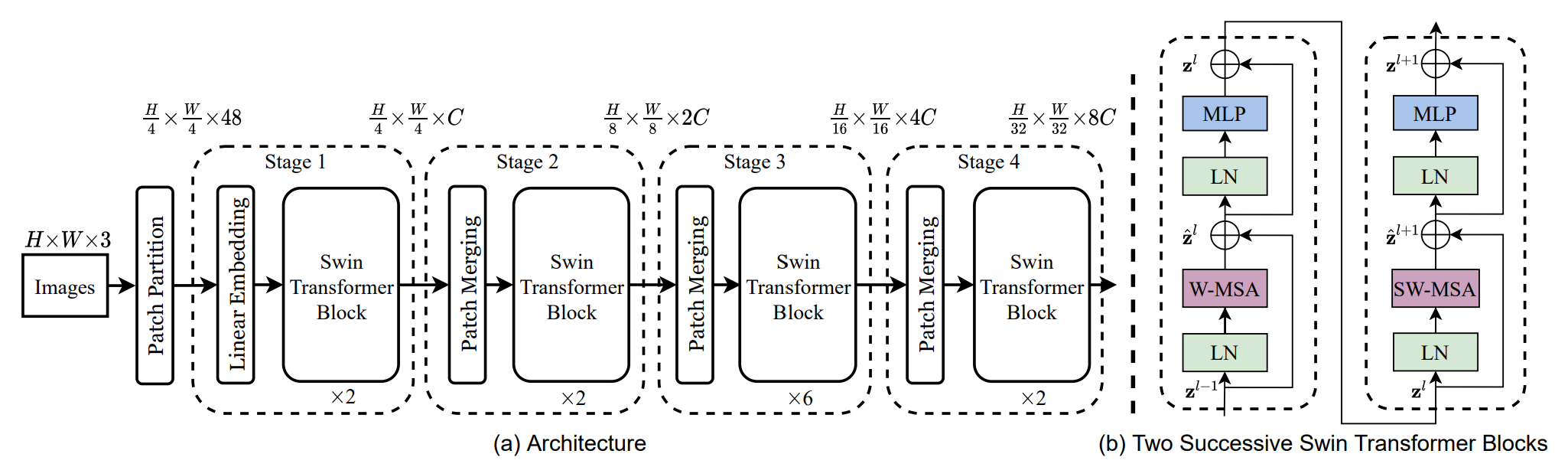

Model Architecture:

---

Classification:

The Swin Transformer model (SwinT variant) was pretrained on the ImageNet-1k dataset for the classification task. Training logs and detailed experiment results can be found in experiments/experiment_1. The achieved accuracy closely matches the results reported in the original paper:

model	accuracy@1	accuracy@5
SwinT (~28M params)	0.8060	0.9510

---

Detection:

For the detection task, conducted on the Microsoft COCO dataset, an SSD framework was implemented. Several Swin-based backbones were designed alongside reference ResNet-based backbones. The SSD detector was evaluated with different backbones and neck variants—two well-known and one newly proposed. The architectures of the proposed backbone networks are illustrated below:

ResNet50-based backbones:

Swin Transformer-based backbones:

The key detection results are summarized in the table below. The metric reported is the COCO mean Average Precision (COCO_mAP), calculated over IoU thresholds ranging from 0.5 to 0.95 with 11 evaluation points:

necks▶ backbones▼	no neck	FPN	PAN	DenseFPN
ResNet50Backbone_A	0.228332	--	--	--
ResNet50Backbone_B	0.247096	0.250236	0.252202	0.253052
SwinTBackbone_A	0.164175	--	--	--
SwinTBackbone_B	0.258104	0.259176	0.258641	0.256729

---

Diffusion generation:

-- in progress

Repo structure:

📦swin_transformer
┣ 📂configs                          # training configurations
┃ ┣ 📜SwinT_clf_300e_default.yaml
┃ ┣ 📜detection_ssd_SwinT.yaml
┃ ┗ 📜detection_ssd_resnet50.yaml
┃
┣ 📂detection
┃ ┣ 📜backbones.py
┃ ┣ 📜data.py
┃ ┣ 📜necks.py
┃ ┣ 📜ssd.py
┃ ┣ 📜test.py                        # source for full validation pipeline
┃ ┣ ⚙️test_detection.sbatch          # slurm script -> test.py (no DDP)
┃ ┣ ⚙️train_det_ddp.sbatch           # slurm script -> training.py (DDP)
┃ ┣ 📜training.py                    # source for training
┃ ┗ 📜utils.py
┃
┣ 📂experiments
┃ ┣ 📂experiment_0                   # trial run
┃ ┣ 📂experiment_1                   # ImageNet classification -> SwinT
┃ ┣ 📂experiment_2                   # SSD detection -> ResNet (B)
┃ ┣ 📂experiment_3                   # SSD detection -> ResNet (B) + FPN
┃ ┣ 📂experiment_4                   # SSD detection -> ResNet (B) + PAN
┃ ┣ 📂experiment_5                   # SSD detection -> ResNet (B) + DenseFPN
┃ ┣ 📂experiment_6                   # SSD detection -> SwinT (A) (short scheduling)
┃ ┣ 📂experiment_7                   # SSD detection -> SwinT (B) (short scheduling)
┃ ┣ 📂experiment_8                   # SSD detection -> SwinT (B)
┃ ┗ 📂experiment_9                   # SSD detection -> SwinT (B) + FPN
┃
┣ 📂notebooks                        # some old colab drafts
┃ ┣ 📜ImageNet_classification.ipynb
┃ ┗ 📜playground.ipynb
┃
┣ 📂saved_weights
┃ ┣ 📦SwinT_statedict.pth            # stored locally
┃ ┗ 📦resnet50_statedict.pth         # stored locally
┃
┣ 📜data.py
┣ 📜model.py                         # Swin Transformer implementation
┣ ⚙️train_clf_ddp.sbatch.            # slurm script -> training.py (DDP)
┣ ⚙️train_clf_default.sbatch
┣ 📜train_clf_imagenet.py
┗ 📜training.py                      # source for classification training

References:

• Original Swin paper
• Official Swin implementation by Microsoft
