Email Verification + 2FA Auth Demo (Vanilla JS + Node/Express)

A beginner-friendly authentication project that feels like a real app, but is still small enough to understand end-to-end.

This repo shows the complete auth story:

• Sign up with email verification (4-digit OTP)
• Sign in with optional 2FA:
  • Email OTP (4 digits)
  • Authenticator app (TOTP, 6 digits)
  • Backup codes (10 one-time codes)
• Forgot password (email OTP + reset)
• Account settings (update profile + change password)

It also includes small UX + “production-ish” details beginners usually miss:

• Auto Unique UserName suggestion (slug from display name) on Sign up + Account settings
• “Dirty guard”: if you manually edit Unique UserName, autosuggest stops overwriting it
• OTP resend cooldown + simple rate limiting (API returns retryAfter)
• “Instructor mode”: if email can’t be sent, the UI shows debug_code so you can keep learning

---

Live: https://twofa-auth-vwrs.onrender.com/

Screenshots

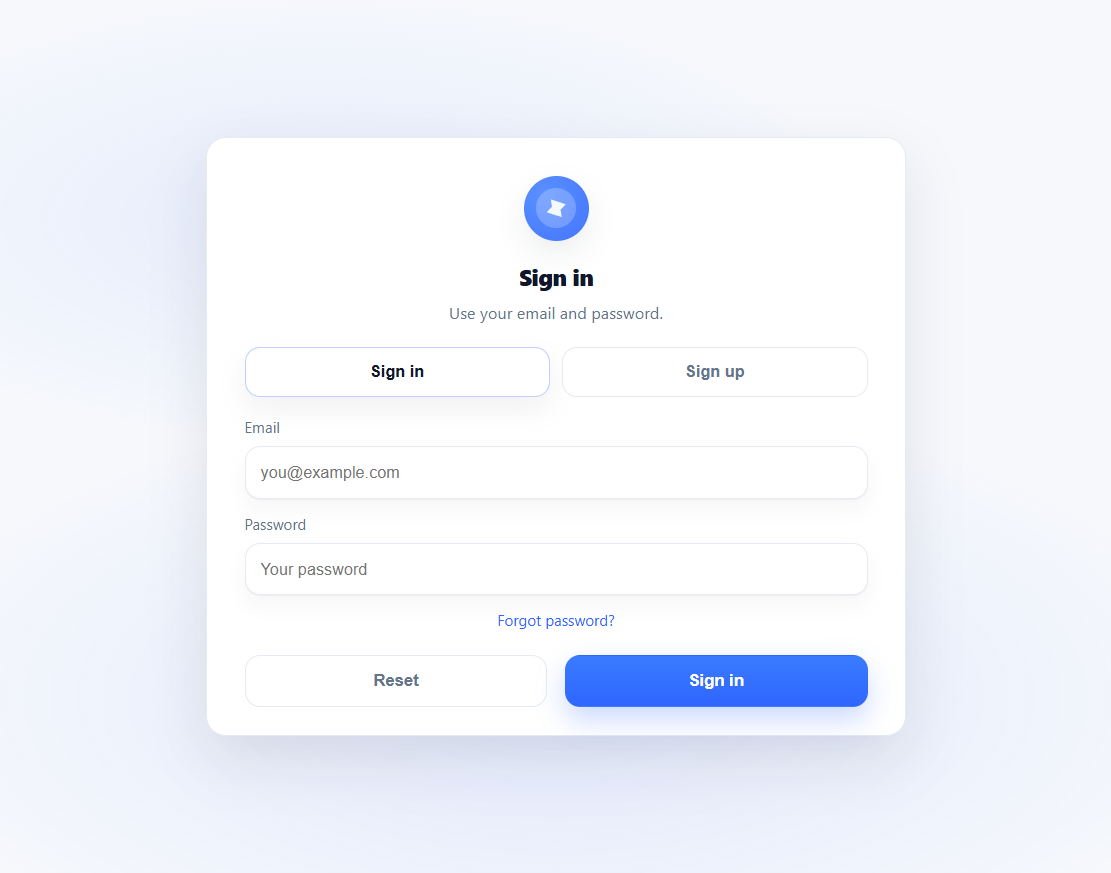

Sign-in

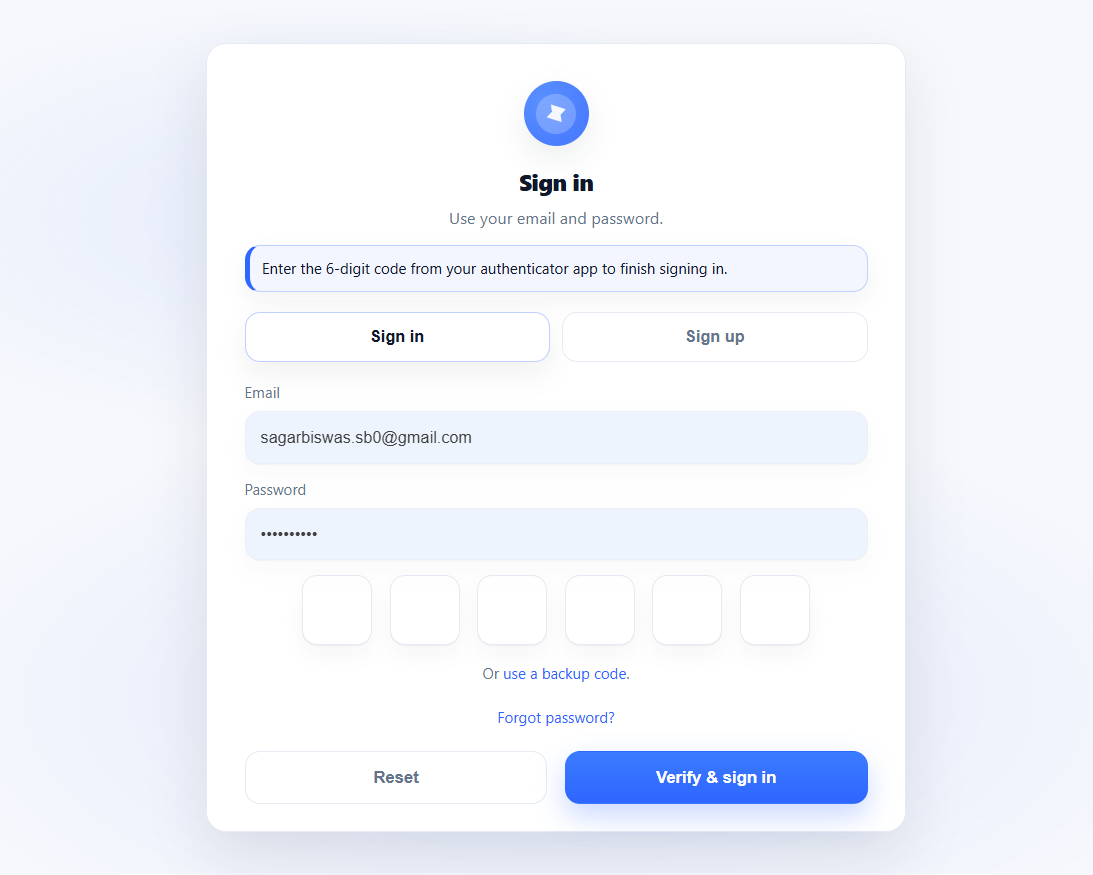

Sign-in with Authenticator

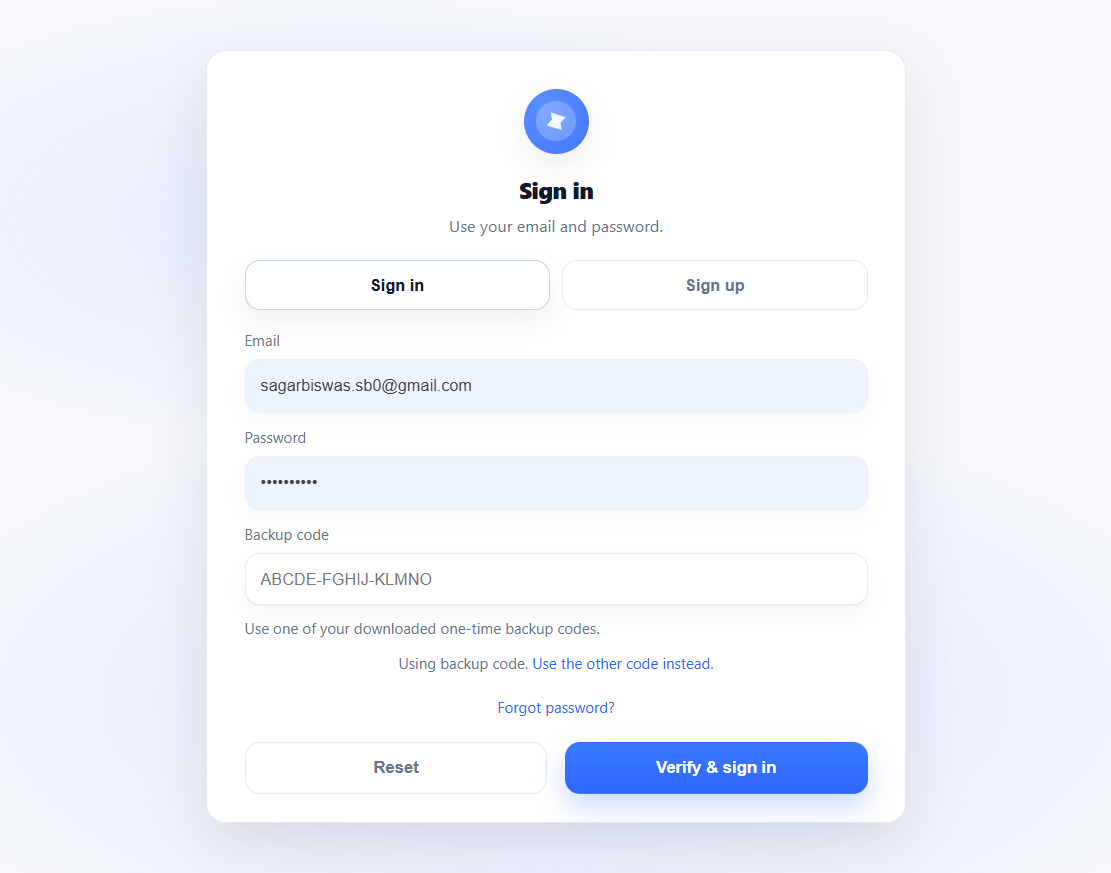

Sign-in with Backup Codes

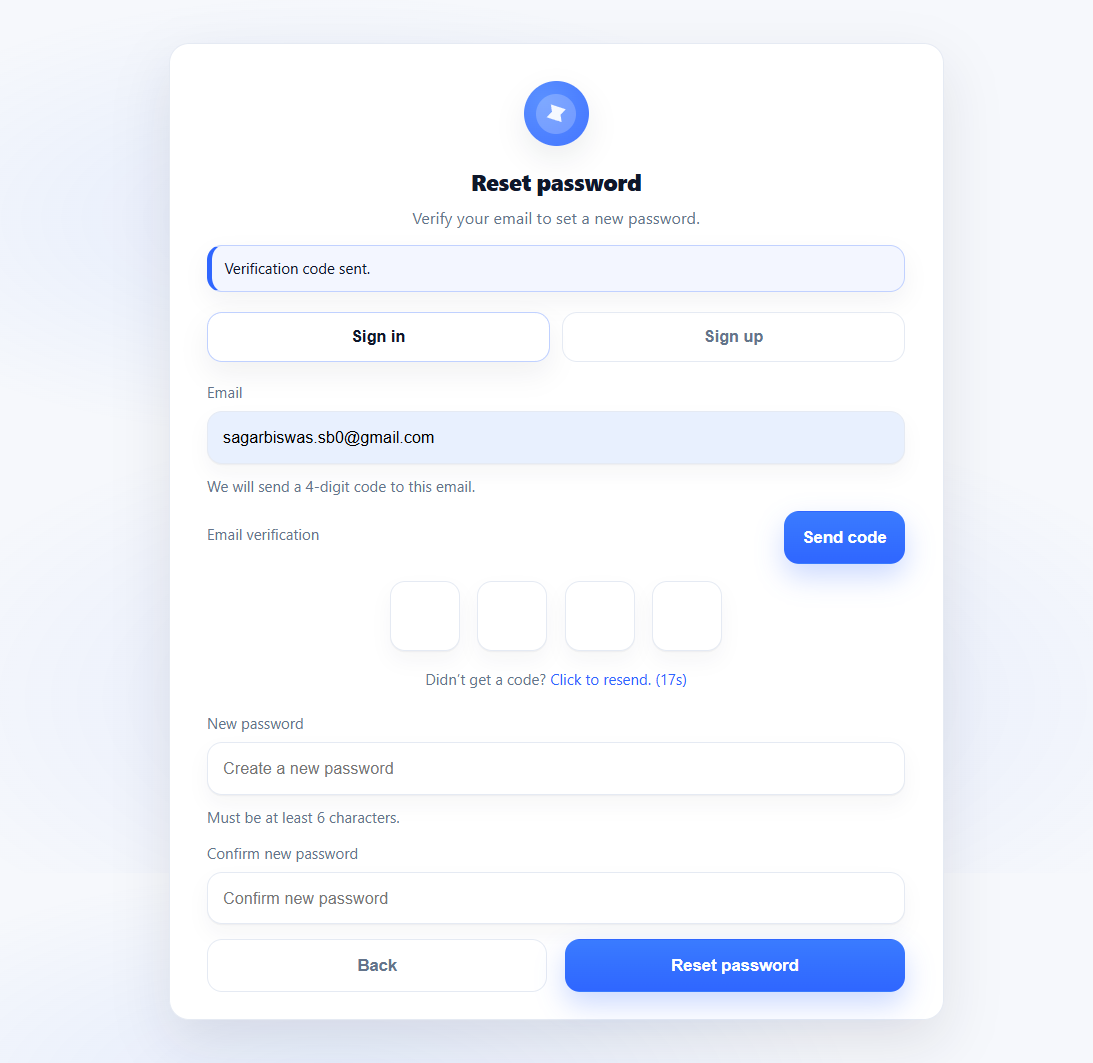

Forget Password

Sing-up

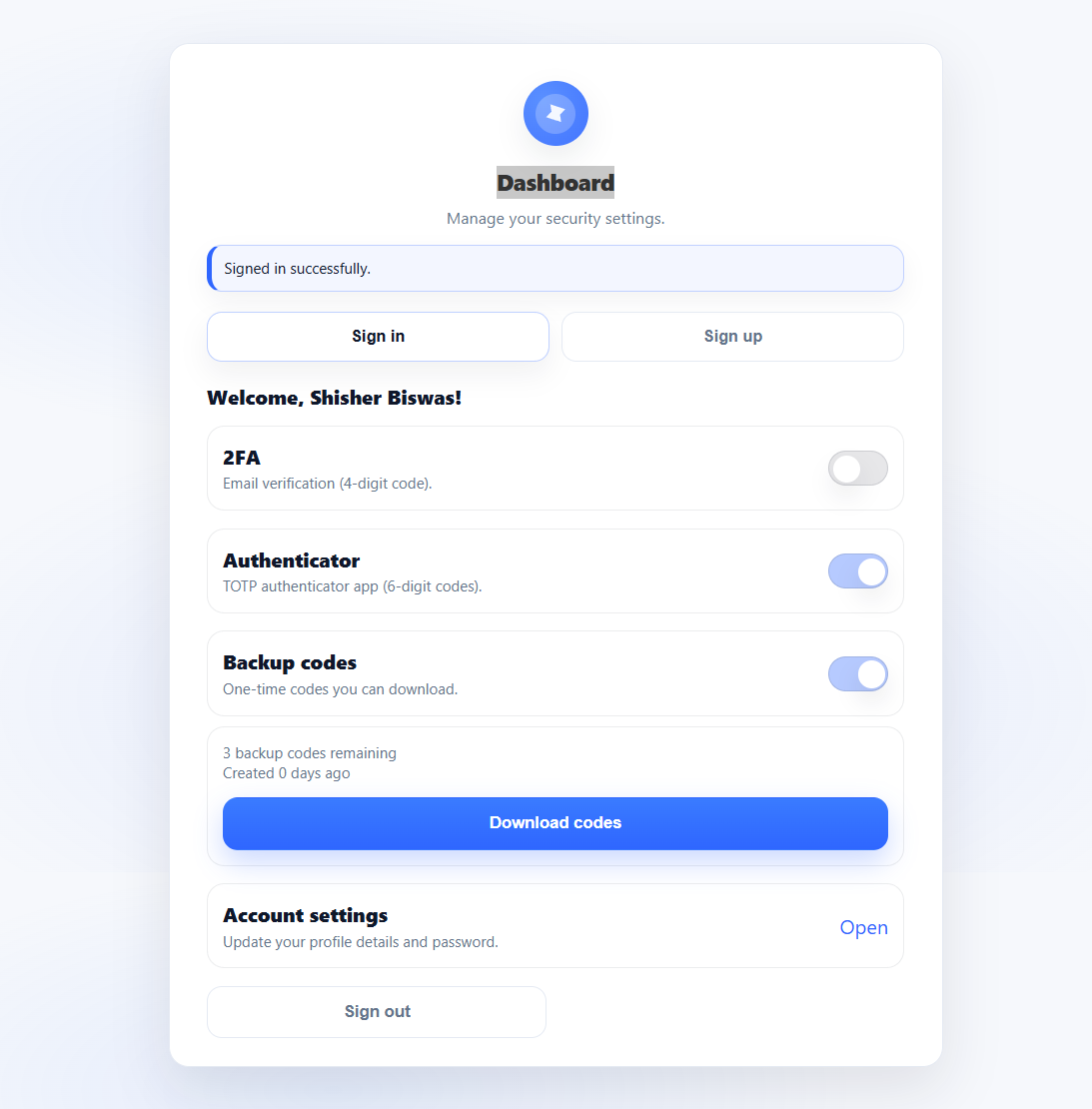

Dashboard

Enable Authenticator

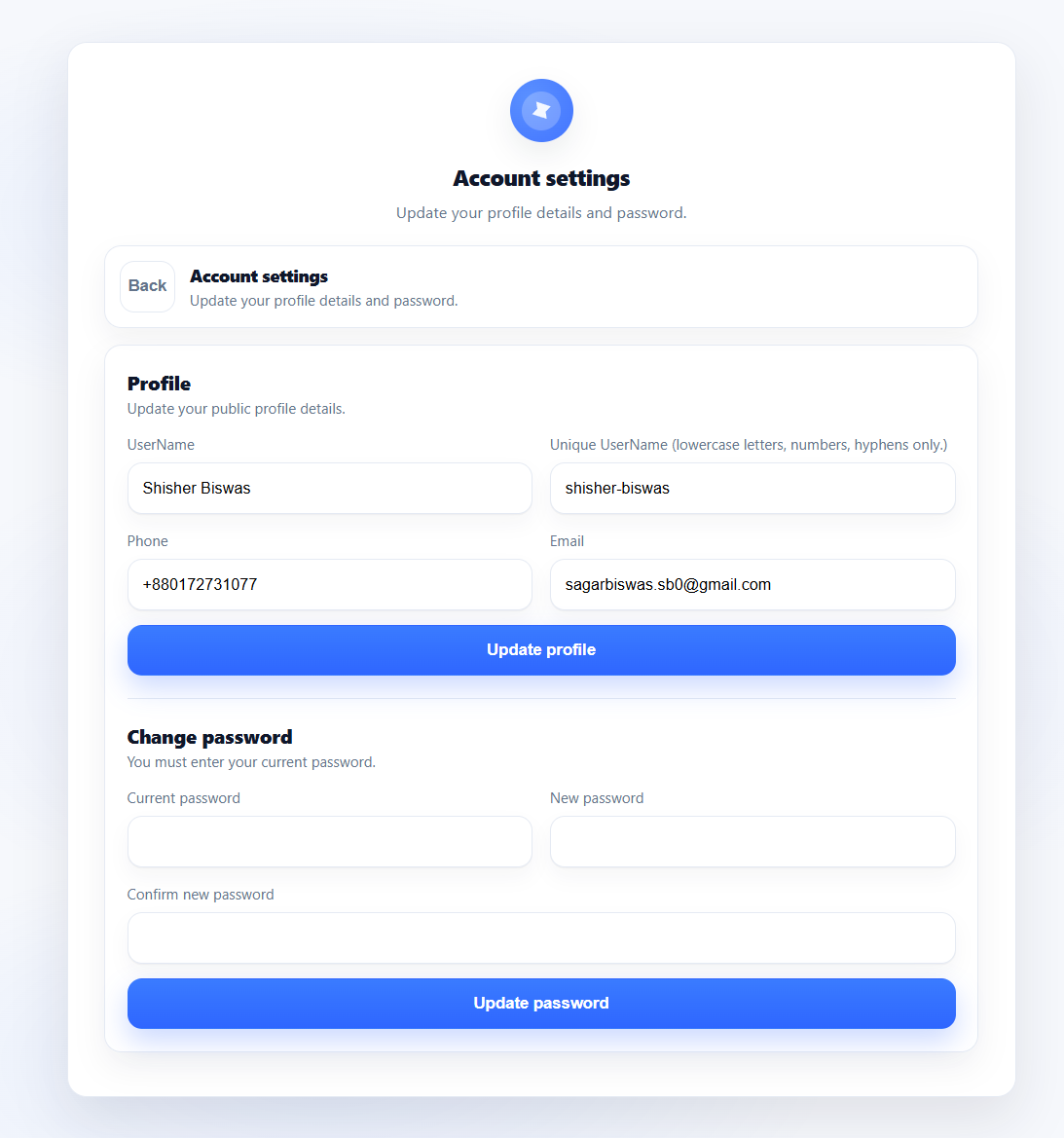

Account Setting

---

1) Quick Start (Local)

Prerequisites

• Node.js (recommended: 18+)
• npm

Install

npm install

Configure environment

1. Create a .env file with:

# Copy to .env (DO NOT commit .env)
# Gmail App Password recommended.

BREVO_API_KEY=
BREVO_FROM=""

PORT=3000

# SMTP settings (defaults are Gmail)
SMTP_USER=
SMTP_PASS=
SMTP_HOST=
SMTP_PORT=
SMTP_SECURE=

# Optional mail settings
# MAIL_SUBJECT=

# SMTP (Brevo relay) (alternative to HTTPS APIs)
SMTP_HOST=
SMTP_PORT=
SMTP_SECURE=
SMTP_USER=
SMTP_PASS=

# Sender address (should be a verified sender in Brevo)
MAIL_FROM=

3. Optional: change PORT (default is 3000)

Run

npm start

Open the URL printed in your terminal, e.g. http://localhost:3000.

Important: don’t open index.html directly. The UI calls /api/* endpoints and needs the server.

Windows PowerShell tip (change port)

$env:PORT=3009; npm start

---

2) Email Sending (Real Delivery vs Instructor Mode)

When you click Send code, the server generates a 4-digit OTP and tries to deliver it.

Delivery options (in order):

1. Brevo HTTPS API (recommended for hosting)
2. SMTP (works locally, but can be blocked by some hosts)
3. Instructor / Debug mode (no email sent; the UI displays the OTP)

Provider fallback behavior (important)

This is the exact fallback logic used by the server when sending OTP emails:

1. If BREVO_API_KEY is set → try Brevo first
2. If Brevo fails (or BREVO_API_KEY is missing) → try SMTP

• SMTP is only attempted if both SMTP_USER and SMTP_PASS are set

3. If SMTP fails (or is not configured) → Instructor/Debug mode

• Response includes delivered: false and a debug_code

If you’re asking “what happens if Brevo fails?” → the app will then try SMTP.

How to force a provider (no code changes)

• Force Brevo-only: set BREVO_API_KEY, and remove/empty SMTP_USER + SMTP_PASS
• Force SMTP-only: remove/empty BREVO_API_KEY, and set SMTP_USER + SMTP_PASS

If you want the opposite order (SMTP → Brevo → Debug), that requires a small change in server.js.

Recommended for hosting: Brevo (HTTPS API)

Brevo works on platforms that block outbound SMTP.

Required env var:

• BREVO_API_KEY

Recommended sender env var:

• MAIL_FROM (example: Email Verification Demo <your@gmail.com>)
  • The sender email must be verified in your Brevo account.

Optional:

• BREVO_FROM (if set, Brevo will prefer this sender)
• MAIL_SUBJECT (custom subject)

SMTP (local-friendly option)

In .env:

• SMTP_USER = your Gmail address
• SMTP_PASS = a Gmail App Password (not your normal password)

Note -- Gmail App Password

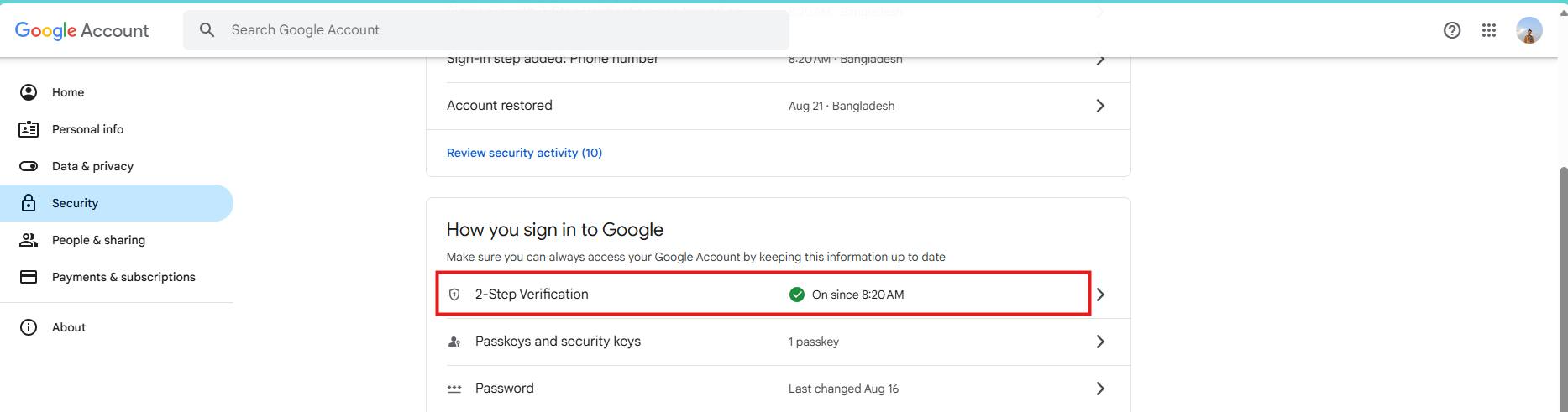

Step-1: Turn on 2-Step Verification

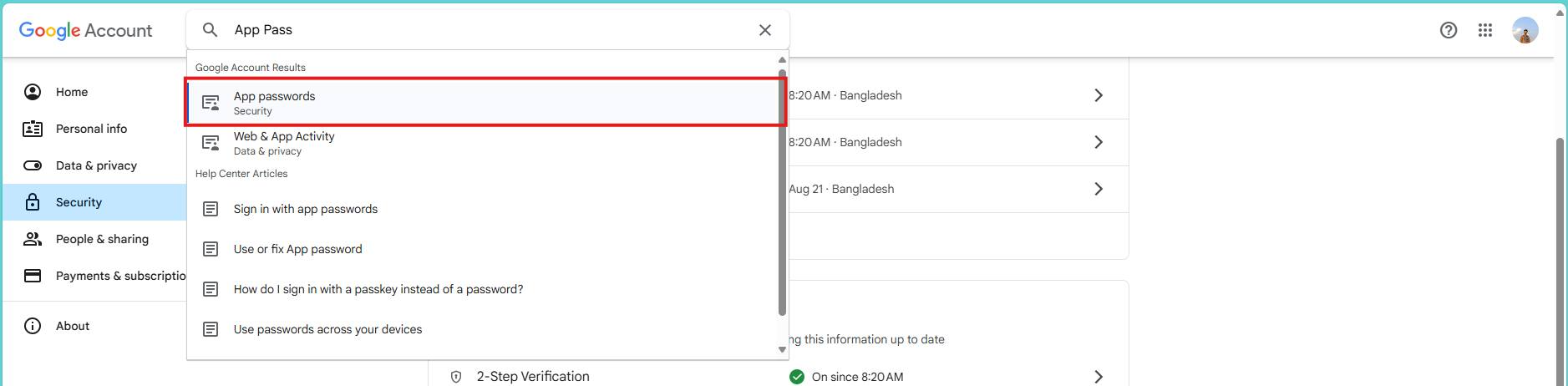

Step-2: Goto App passwords

OR, visit: https://myaccount.google.com/apppasswords

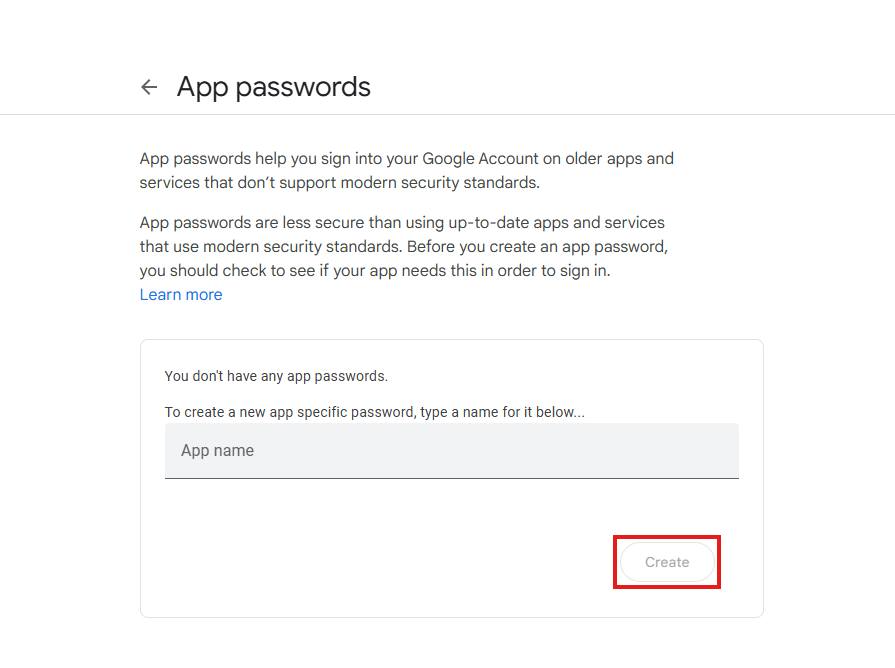

Step-3: Create App

Optional:

• MAIL_FROM (example: Email Verification Demo <your@gmail.com>)
• MAIL_SUBJECT

Instructor / Debug OTP mode

If email isn’t configured (or delivery fails), OTP endpoints return:

• delivered: false
• debug_code: "1234"

The frontend shows this code so you can keep learning without setting up email.

---

3) Deploy to Render (Beginner Steps)

Render does not want you to upload a .env file. Instead, copy env vars into Render:

1. Render Dashboard → your service → Environment
2. Add your env vars (do not wrap values in quotes)
3. Deploy

Template file you can use as a checklist:

• .envForRender.example

Important:

• Don’t set PORT on Render (Render injects it automatically)
• Never commit secrets (API keys, SMTP passwords)

---

4) Beginner Walkthrough (What You’ll See)

A) Sign up (email verification)

1. Open Sign up
2. Enter UserName
3. The app auto-suggests a Unique UserName from your name (example: sagar-biswas)
4. Enter email → Send code → enter the 4-digit OTP
5. Create account

Notes:

• OTPs expire in ~5 minutes
• OTP resend is rate-limited (API returns retryAfter)

B) Sign in (password + optional 2FA)

1. Enter email + password
2. If you enabled a 2FA method, complete one of:
   • Email OTP (4 digits)
   • Authenticator TOTP (6 digits)
   • Backup code (one-time)

C) Dashboard

After sign-in you can manage:

• 2FA (Email OTP)
• Authenticator (TOTP)
• Backup codes

D) Account settings

• Update profile fields (including Unique UserName)
• Unique UserName can be auto-suggested here too
  • If you type your own Unique UserName manually, suggestions won’t overwrite it
• Change password requires your current password

E) Forgot password

1. From Sign in, click Forgot password?
2. Enter your registered email
3. Send code → enter 4-digit OTP
4. Set a new password
5. Any active sessions for that email are cleared (forces sign-in again)

---

5) Project Structure (File Map)

• index.html — UI layout (Sign in / Sign up / Forgot password / Dashboard)
• src/app.js — frontend logic (fetch to /api/*, view switching, autosuggest, forms)
• src/styles.css — styling
• server.js — Express API, sessions, OTP/TOTP, backup codes, persistence
• data/users.json — local JSON “database” (auto-created)

High-level architecture:

Browser (index.html + src/app.js)
   |
   | fetch('/api/...')
   v
Node/Express (server.js)
   |
   | reads/writes
   v
data/users.json

---

6) How It Works (Under the Hood)

OTP (email codes)

• OTP is 4 digits, TTL ~5 minutes
• Server stores only a hash of the OTP in memory (otpStore)
• OTP entries are scoped by purpose (signup/reset/signin)
• Attempts are limited (MAX_ATTEMPTS)
• Send has cooldown + simple per-IP limits

Sessions

• The server issues an HttpOnly cookie named sid
• Session data is stored in memory (sessions Map)

TOTP (Authenticator)

• RFC 6238 style (SHA1, 30s step, 6 digits)
• Server creates a Base32 secret and an otpauth:// URI
• QR generation is supported (uses qrcode)

Backup codes

• Generates 10 one-time codes
• Stores hashes only
• Using a backup code consumes it

---

7) API Reference (Accurate to This Repo)

Health

• GET /api/health

Username suggestions

• GET /api/username/suggest?name=Your%20Name

Sign up

• POST /api/signup/send-code — send signup OTP
• POST /api/signup — create account (requires OTP)

Forgot password

• POST /api/password/forgot/send-code — send reset OTP
• POST /api/password/forgot/reset — verify OTP + set new password

Sign in

• POST /api/signin/start
• POST /api/signin/send-code
• POST /api/signin/complete

Session

• GET /api/me (requires auth)
• POST /api/signout

Account settings (requires auth)

• POST /api/account/update — update profile fields
• POST /api/account/password — change password

2FA settings (requires auth)

• POST /api/2fa/set
• POST /api/2fa/method

Authenticator / TOTP (requires auth)

• POST /api/totp/begin
• POST /api/totp/reset-begin
• GET /api/totp/qr
• POST /api/totp/cancel
• POST /api/totp/confirm

Backup codes (requires auth)

• POST /api/backup-codes/enable
• POST /api/backup-codes/disable
• GET /api/backup-codes/status

Lookup helper (requires auth)

• GET /api/users/by-unique/:unique

Legacy / generic OTP helpers (used for learning / reuse):

• POST /api/send — send OTP for an arbitrary purpose
• POST /api/verify — verify OTP for an arbitrary purpose

---

8) Troubleshooting

“API route not found”

Usually means:

• you opened index.html directly (don’t), or
• you started a different server from another folder/port

Fix:

• Start the server from the correct project folder
• Open the exact URL printed by the server

Port already in use

If the port is busy, set a different one:

$env:PORT=3009; npm start

Email not sending

• If you see debug_code, delivery failed and the app switched to Instructor mode — this is OK for learning.
• For real delivery on hosting, use Brevo HTTPS (BREVO_API_KEY + a verified sender).
• For real delivery locally, use a Gmail App Password and restart after editing .env.

No QR code for authenticator

• Ensure qrcode is installed (npm i qrcode), or
• Use manual setup with the Base32 secret shown in the UI

---

9) Production-like polish (What this repo already does)

This is still a learning project, but it includes a few “real world” touches:

• Disables X-Powered-By
• Adds basic security/correctness headers
• Avoids caching /api/* responses (OTP endpoints are no-store)
• Stores OTPs as hashes (not plaintext)

10) If you want to make it truly production-ready

High-value checklist:

• Password hashing: replace SHA-256 with bcrypt / scrypt / Argon2
• Persistence: replace data/users.json with a real DB (Postgres/MySQL/MongoDB)
• Sessions: store sessions in Redis/DB; use HTTPS; set cookie Secure + SameSite
• CSRF protection (because cookies are used)
• Logging + monitoring (and never leak secrets)
• Email enumeration: consider making forgot-password always return a generic response
• Protect TOTP secrets properly (encrypt-at-rest in a real system)

---

11) Instructor Mode (Teaching Script + Exercises)

A) 30–45 minute teaching flow

1. Show Sign up with email OTP (OTP TTL + attempts)
2. Show Unique UserName auto-suggestion (slugifying + uniqueness)
3. Sign in and explain sessions (HttpOnly cookie sid)
4. Enable Email 2FA → sign out → sign in again → complete OTP
5. Enable TOTP and explain otpauth:// + 30s window
6. Enable backup codes and explain “one-time” behavior
7. Show Account settings update + password change
8. Show Forgot password flow + forced sign-out of active sessions

B) Beginner exercises (safe extensions)

1. Add GET /api/version returning app name + version.
2. Improve forgot-password to avoid email enumeration (always respond ok: true).
3. Add SameSite=Lax cookie attribute in the session cookie helper.
4. Replace password hashing with bcrypt.
5. Add tests for OTP expiry + attempt limits + backup code consumption.
