Volleyball Court Keypoint Detection with YOLOv11 Pose

This repository provides a complete pipeline for training and running inference with a YOLOv11 pose estimation model to detect key points on a volleyball court. It focuses on back-view cameras in indoor gyms.

The model detects 8 key court keypoints and connects them to reconstruct court lines. This enables applications such as:

• Homography estimation and court warping
• Mapping player positions to court coordinates
• Ball trajectory analysis
• Broadcast graphics augmentation

Example Detection

Article Volleyball Court detection

Features

• Custom annotation tool (vb-court_annotator.py) for manual keypoint labeling
• Dataset preparation scripts (split, merge COCO JSONs, convert to YOLO format)
• Training scripts for YOLOv11m-pose and YOLOv11s-pose with tuned hyperparameters
• Multi-court inference script (supports volleyball, tennis, badminton – easily extensible)
• Real-time visualization with FPS counter and pause/resume

Keypoints Definition

The model uses 8 keypoints:

ID	Name	Description
0	1_back_left	Back left corner (far side)
1	2_back_left	Adjacent back left point
2	3_back_right	Back right corner (far side)
3	4_back_right	Adjacent back right point
4	5_center_left	Attack line left
5	6_center_right	Attack line right
6	7_net_left	Net pole left
7	8_net_right	Net pole right

Skeleton connections form the full court outline and net.

Project Structure

text

.
├── vb-court_annotator.py          # Manual annotation tool
├── run_v11m.py                    # Training script (YOLOv11m-pose)
├── multi_court_inference.py       # Inference on video with visualization
├── coco2yolo_keypoints.py         # Convert COCO → YOLO pose format
├── split_dataset.py               # Split dataset into train/val
├── merge_jsons.py                 # Merge multiple COCO JSONs
├── pyproject.toml                 # Dependencies
├── data/                          # Place your images + annotations here
└── runs/                          # Training results (Ultralytics format)

Setup

1. Clone the repository

   Bash

   git clone https://github.com/asigatchov/Court-Keypoint-Detection.git
   cd Court-Keypoint-Detection


2. Install dependencies

   Bash

   with venv

   python -m venv venv
   source venv/bin/activate  # On Windows: venv\Scripts\activate
   pip install ultralytics opencv-python tqdm



   with uv tools

   uv sync


Workflow

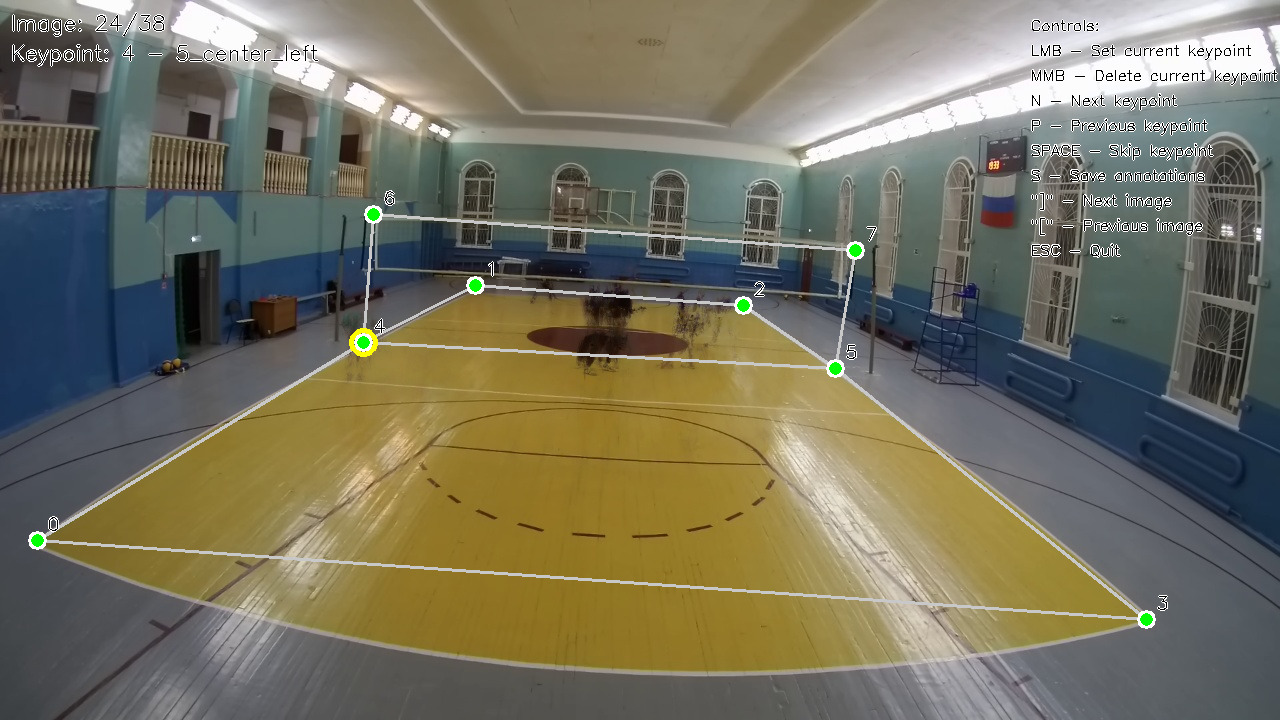

1. Annotate Images

Use the interactive tool:

Bash

python vb-court_annotator.py --data_dir path/to/your/images

Controls:

• LMB — Set current keypoint
• MMB — Delete current keypoint
• N / P — Next / Previous keypoint
• SPACE — Skip keypoint (mark as invisible)
• S — Save annotation
• [ / ] — Previous / Next image
• ESC — Quit

Annotations save as COCO-style .json files next to each image.

2. Prepare Dataset for YOLO

Bash

# Split into train/valid
python split_dataset.py --input_dir path/to/annotated --output_dir yolo-datasets

# Merge COCO JSONs per split (if needed)
python merge_jsons.py --data_dir yolo-datasets/train/
python merge_jsons.py --data_dir yolo-datasets/valid/

# Convert to YOLO format + generate data.yaml
python coco2yolo_keypoints.py --data_dir yolo-datasets/

This creates the YOLO structure with images/, labels/, and data.yaml.

3. Train the Model

Edit run_v11m.py to point to your data.yaml, then:

Bash

python run_v11m.py

Start with yolo11s-pose.pt. Switch to yolo11m-pose.pt for higher accuracy.

Weights and logs appear in runs/yolo11m_pose/....

4. Inference on Video

Bash

python multi_court_inference.py \
  --model_path runs/yolo11m_pose/.../weights/best.pt \
  --video_path path/to/video.mp4 \
  --court_type volleyball \
  --visualize

Press SPACE to pause/resume, q to quit.

Results

With 500–1000 annotated images from varied angles and lighting, the model achieves robust detection on challenging back views. Heavy augmentations ensure good generalization across gyms.

uv run split_dataset.py --input_dir /home/nssd/gled/vb/dataset-vb/vb-my-court/vb-backline-mycams/datasets --output_dir /home/nssd/gled/vb/dataset-vb/vb-my-court/vb-backline-mycams/yolo-datasets
uv run merge_jsons.py --data_dir /home/nssd/gled/vb/dataset-vb/vb-my-court/vb-backline-mycams/yolo-datasets/valid/
uv run merge_jsons.py --data_dir /home/nssd/gled/vb/dataset-vb/vb-my-court/vb-backline-mycams/yolo-datasets/train/
uv run coco2yolo_keypoints.py --data_dir /home/nssd/gled/vb/dataset-vb/vb-my-court/vb-backline-mycams/yolo-datasets/
