Backpropagation in 11 Lines

This project explores the implementation of simple neural networks using Python and the NumPy library.
It demonstrates the basic principles of building and training neural networks with one and two hidden layers.

---

🔹 Bilayered Neural Network

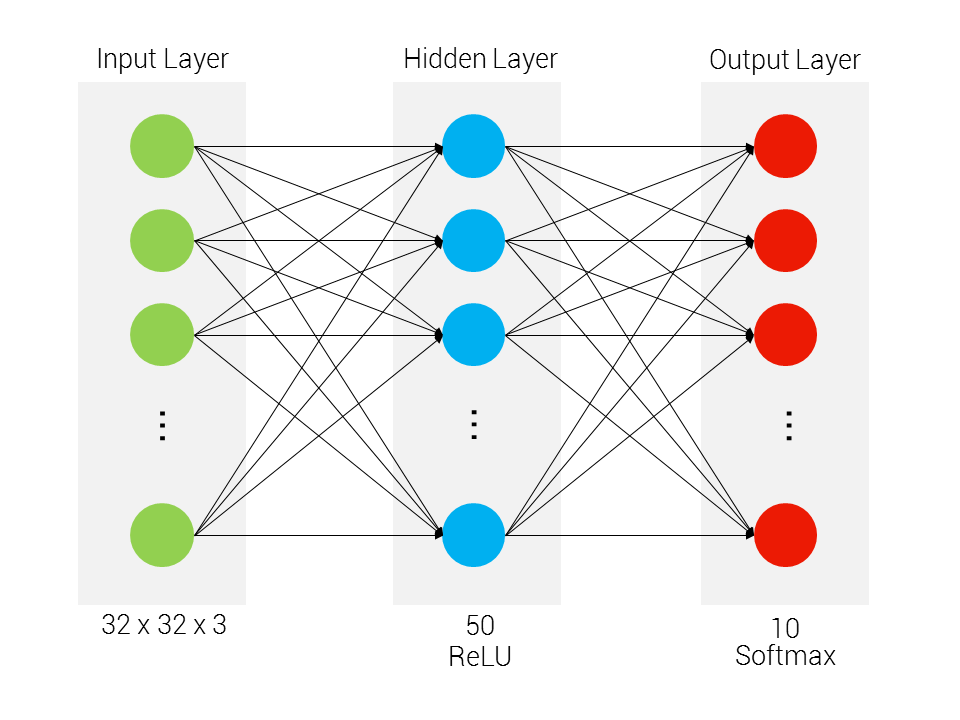

This section implements a basic neural network with a single hidden layer.

Code Explanation

• nonlin(x, deriv=False): Sigmoid activation function. Returns the sigmoid of the input x or its derivative if deriv=True.
• X: The input dataset (rows = training examples, columns = features).
• y: The output dataset (rows = expected outputs).
• syn0: Synaptic weights connecting the input layer to the hidden layer (randomly initialized).
• Training Loop: Runs for 10,000 iterations to train the network.
• Forward Propagation: Input l0 × weights syn0 → passed through sigmoid → hidden layer output l1.
• Error Calculation: Difference between expected output y and predicted output l1.
• Delta Calculation: l1_error × derivative of sigmoid(l1) → l1_delta, which indicates how much to adjust weights.
• Weight Update: syn0 updated with the dot product of l0.T and l1_delta.

Code:

import numpy as np

# Sgmoid function
def nonlin(x, deriv=False):
  if (deriv==True):
    return x * (1-x)
  return 1 / (1+np.exp(-x))

# Input dataset
X = np.array([  [0,0,1],
                [0,1,1],
                [1,0,1],
                [1,1,1] ])

# Output dataset
y = np.array([[0,0,1,1]]).T

np.random.seed(1)

syn0 = 2*np.random.random((3,1)) - 1

for iter in range(10000):

  # Forward Propagation
  l0 = X
  l1 = nonlin(np.dot(l0, syn0))

  # By how much was missed?
  l1_error = y - l1

  # Multiply how much we missed,
  # by the slope of the sigmoid values
  l1_delta = l1_error * nonlin(l1, True)
  syn0 += np.dot(l0.T,l1_delta)

print("Output after training:")
print(l1)

Output:

Output after training:
[[0.00966449]
 [0.00786506]
 [0.99358898]
 [0.99211957]]

---

🔹 Trilayered Neural Network

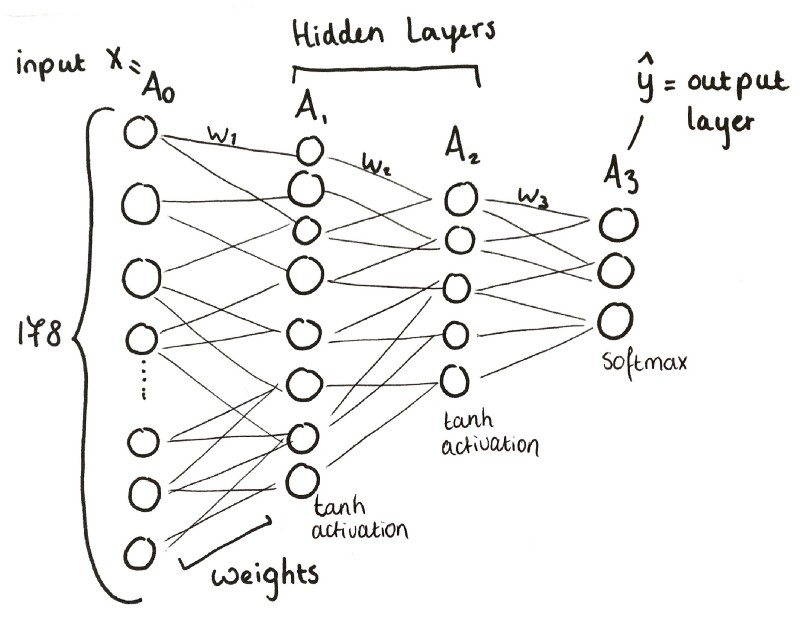

This section implements a neural network with two hidden layers.

Code Explanation

• nonlin(x, deriv=False): Same sigmoid activation function as before.
• X: Input dataset.
• y: Output dataset.
• syn0: Synaptic weights connecting the input layer to the first hidden layer.
• syn1: Synaptic weights connecting the first hidden layer to the second hidden layer (both initialized randomly).
• Training Loop: Runs for 60,000 iterations to train the network.
• Forward Propagation:
  • l0 → first hidden layer via syn0 → output l1
  • l1 → second hidden layer via syn1 → final output l2
• Error Calculation: l2_error = y - l2 (difference between expected and predicted outputs).
• Error Reporting: Mean absolute error printed every 10,000 iterations.
• Backpropagation: Error propagated backward → l2_delta and l1_delta computed.
• Weight Update: syn1 and syn0 updated using the deltas and outputs from previous layers.

Code:

import numpy as np

def nonlin(x, deriv=False):
  if(deriv==True):
    return x * (1 - x)
  return 1/ (1 + np.exp(-x))

# Input dataset
X = np.array([  [0,0,1],
                [0,1,1],
                [1,0,1],
                [1,1,1] ])

# Output dataset
y = np.array([[0],
              [1],
              [1],
              [0]])

np.random.seed(1)

# Randomly inititalize our weights with a mean of zero
syn0 = 2*np.random.random((3,4)) - 1
syn1 = 2*np.random.random((4,1)) - 1

for j in range(60000):
  # Feed forward through layers 0 through 2
  l0 = X
  l1 = nonlin(np.dot(l0,syn0))
  l2 = nonlin(np.dot(l1,syn1))

  # By how much did we miss our target value
  l2_error = y - l2

  if (j%10000) == 0:
    print("Error:", str(np.mean(np.abs(l2_error)))) # Changed + to , and made it a single argument


  # Which direction is the actual target value,
  # if unsure don't change that much
  l2_delta = l2_error*nonlin(l2,deriv=True)

  # How much did each l1 value contribute to the l2 error (according to weights)
  l1_error = l2_delta.dot(syn1.T)
  l1_delta = l1_error * nonlin(l1,deriv=True)

  # update weights
  syn1 += l1.T.dot(l2_delta)
  syn0 += l0.T.dot(l1_delta) # Changed l0.dot to l0.T.dot

print("\n2nd output after training:") # Added print statement for final output
print(l2)

Output:

Error: 0.4964100319027255
Error: 0.008584525653247157
Error: 0.0057894598625078085
Error: 0.004629176776769985
Error: 0.0039587652802736475
Error: 0.003510122567861678

2nd output after training:
[[0.00260572]
 [0.99672209]
 [0.99701711]
 [0.00386759]]

---

📌 Summary

This notebook provides a basic introduction to building and training simple neural networks from scratch, including both a single-hidden-layer (bilayered) and a two-hidden-layer (trilayered) implementation.
