cdweather

The cdweather is a weather station that shows/sends full real time data

why did u make this

i wanted to se the local weather and have a api but idk how , here comes the cdweather a esp connect to a oled and bme this setup gives you both a real time data you can send via the esp and shows you UR real time weather

firmware

am going to use circuitpython to both send data to my oled and hope fuly as a api

pics

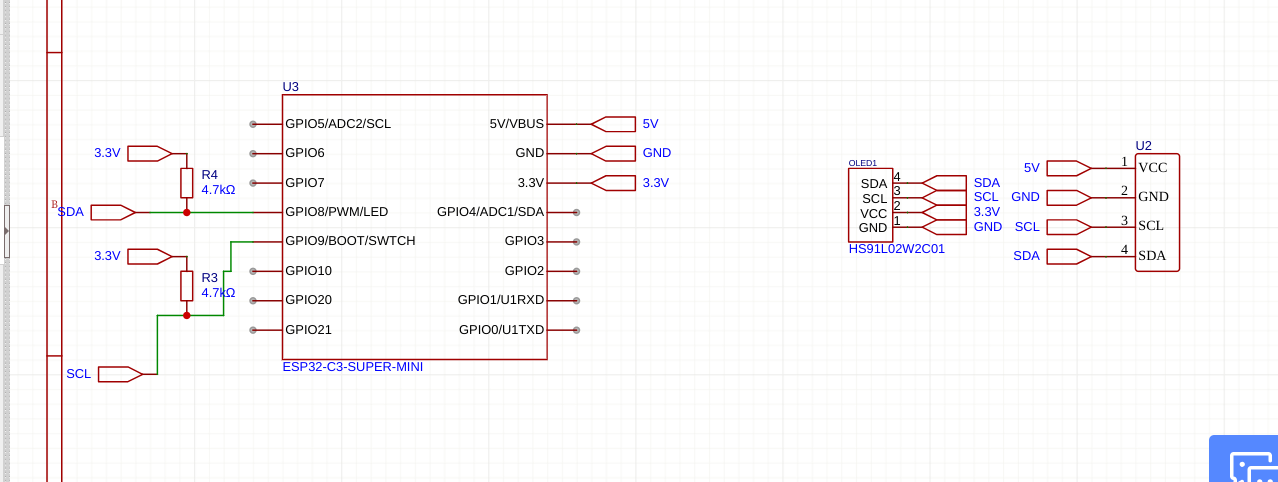

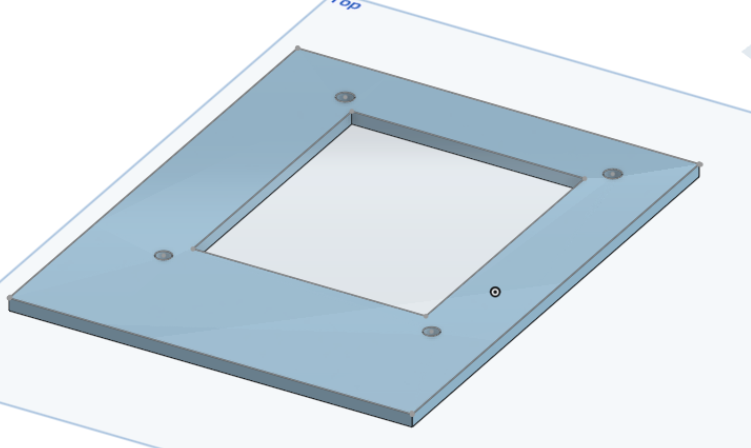

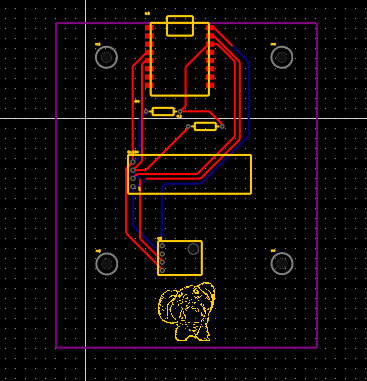

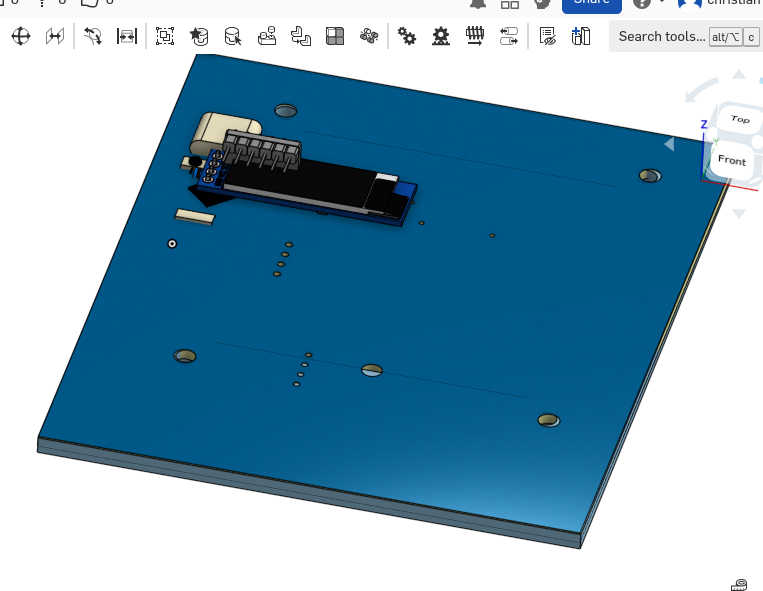

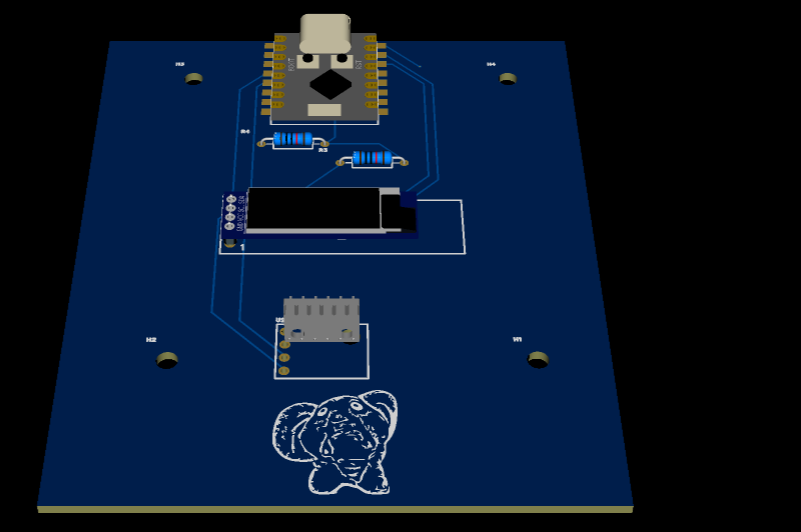

case pcb 3dpcb schematic schematic

prices

oled HS91L02W2C01 1 $ 2.01

resistors 100 "moq" $ 0.56

lcsc everyting + shiping = $20.12

ESP32 C3 Super Mini Development Board 1 $1.83

BME280 5V $3.30

aliexpress total $12.12

jlcpcb $5.88

3.2mm screws 4 "paying for my self"

total price with shiping and everyting 38.12 usd

maybe a like 45 for 3d case shiping
