Docker Static Maps API 🗺️

Generate static map images via a lightweight REST API

docker-staticmaps is an open-source API for rendering static map images. Easily create maps with markers, polygons, circles, polylines or text, making it perfect for embedding map images on websites or apps. Comes with built-in rate limiting and image caching to optimize performance and protect against abuse.

🚀 Features

✅ Generate static maps with markers, polygons, circles, polylines and text.
🌍 Supports multiple basemaps (OpenStreetMap, Esri, Stamen, Carto, custom tile server).
⚡ Easy-to-use REST API - simple integration with any frontend or backend.
🐳 Docker-ready for fast, lightweight deployment.
🧊 Tile and image caching for performance.
🚦 Built-in rate limiting per IP to protect against abuse.

🏁 Quickstart

Run the service with Docker:

docker run -p '3000:3000/tcp' mxdcodes/docker-staticmaps:latest

Send a sample request:

curl "http://localhost:3000/api/staticmaps?width=1000&height=1000&center=-18.2871,147.6992&zoom=9&basemap=satellite"

A small demo UI is available at http://localhost:3000

📚 Table of Contents

Installation & Configuration
- Supported Environment Variables
- Docker Deployment
API Reference
Development

🛠️ Installation & Configuration

⚙️ Supported Environment Variables

Name	Type	Default Value	Description
`PORT`	`number`	`3000`	Port number for the API
`API_KEY`	`string`	(none)	Optional key to restrict access
`LOG_LEVEL`	`string`	`INFO`	Logging level (`DEBUG`, `INFO`, `WARN` or `ERROR`)
`TILE_CACHE_TTL`	`number`	`3600`	Tile cache TTL in seconds.
`DISABLE_TILE_CACHE`	`boolean`	`false`	Set to `true` to disable tile caching
`RATE_LIMIT_MS`	`number`	`60000`	Rate limit window in milliseconds
`RATE_LIMIT_MAX`	`number`	`60`	Max requests per IP per window

🐳 Docker Deployment

To run the container in detached mode:

docker run -d \
  --name='docker-staticmaps' \
  -p '3000:3000' \
  -e API_KEY="your_api_key" \
  -e LOG_LEVEL="INFO" \
  -e TILE_CACHE_TTL=3600 \
  -e DISABLE_TILE_CACHE=false \
  -e RATE_LIMIT_MS=60000 \
  -e RATE_LIMIT_MAX=60 \
  mxdcodes/docker-staticmaps:latest

Or use docker-compose.yml:

services:
  docker-staticmaps:
    image: mxdcodes/docker-staticmaps:latest
    container_name: docker-staticmaps
    restart: always
    ports:
      - "3000:3000"
    environment:
      - API_KEY=your_api_key
      - LOG_LEVEL=INFO
      - TILE_CACHE_TTL=3600
      - DISABLE_TILE_CACHE=false
      - RATE_LIMIT_MS=60000
      - RATE_LIMIT_MAX=60

A Healthcheck endpoint is available at /health.

🧑‍💻 API Reference

Request static maps from the /api/staticmaps endpoint using the following parameters:

Required Parameters

Parameter	Default	Description
`center`	(required)	Center of map (`lon,lat`, e.g. `-119.49280,37.81084`)
`zoom`	(required)	Zoom level (`1` to `18`).

Optional Parameters

Parameter	Default	Description
`width`	`800`	Image width in pixels
`height`	`800`	Image height in pixels
`paddingX`	`0`	Horizontal padding in pixels
`paddingY`	`0`	Vertical padding in pixels
`format`	`png`	Output format: `png`, `jpg`, `webp` or `pdf`
`quality`	`100`	Image quality (0–100) for `jpg`/`webp`
`basemap`	`osm`	Tile layer (see Basemap for supported types)
`attribution`		Attribution text (see Attribution)
`tileUrl`		Tile URL with `{x}`, `{y}`, `{z}` or `{quadkey}` placeholders
`tileSubdomains`	`[]`	Tile subdomains like `['a', 'b', 'c']`
`tileLayers`	`[]`	Multiple tile layers with `tileUrl` and `tileSubdomains`
`tileSize`	`256`	Size of tiles in pixels
`tileRequestTimeout`		Tile request timeout (ms)
`tileRequestHeader`	`{}`	Extra headers for tile requests
`tileRequestLimit`	`2`	Max parallel tile requests
`zoomRange`	`{ min: 1, max: 17 }`	Min and max zoom to try
`reverseY`	`false`	Use TMS-style Y axis if `true`

🌍 Basemap

Use the basemap parameter to select a predefined basemap or specify a custom tile server with the tileUrl parameter.

Key	Provider / Type
`osm`	Open Street Map
`otm`	OpenTopoMap
`streets`	Esri Streets
`satellite`	Esri Satellite
`hybrid`	Esri Hybrid (satellite + labels)
`topo`	Esri Topographic
`gray`	Esri Gray w/ labels
`gray-background`	Esri Gray background only
`hillshade`	Esri Hillshade
`national-geographic`	National Geographic
`stamen-toner`	Stamen Toner (B/W)
`stamen-watercolor`	Stamen Watercolor
`carto-light`	Carto Light
`carto-dark`	Carto Dark

Make sure to respect the usage policy of each provider!

📝 Attribution

The map service supports an optional attribution query parameter to control whether and how attribution is rendered on the generated image.

Basic Behavior

Attribution is shown by default (if nothing is passed).
If no custom text is provided, the service uses the default attribution for the selected basemap.

Parameter Format

The attribution parameter accepts key-value pairs separated by |, for example:

&attribution=show:true|text:© OpenStreetMap contributors

Supported Keys

Key	Description	Example
show	`true` or `false` – controls visibility	`show:false`
text	Custom attribution text (URL-encoded)	`text:%C2%A9%20Your%20Company`

🖊️ Polylines

To add one or more polylines, use the polyline parameter one or multiple times in the URL query in the following format:

polyline=polylineStyle|polylineCoord1|polylineCoord2|...

polylineCoord:
- Lat, Lon Coordinates: Coordinates in lat, lon format, separated by |. You need at least two coordinates.
- Encoded Polylines: You can also use Google Encoded Polyline format.

polylineStyle: Customize the polyline with:

Parameter	Default	Description
`weight`	`6`	Sets the stroke width of the polyline.
`color`	`#0000ff`	Defines the stroke color of the polyline.
`fill`		Specifies the fill color of the polyline.
`strokeDasharray`	(none)	Pattern of dashes and gaps, e.g., `5,5` see stroke-dasharray.

Note: For each pair of coordinates in the input, a geodesic line is generated between them.

Regular Coordinates example with no zoom, weight:6, color:0000ff

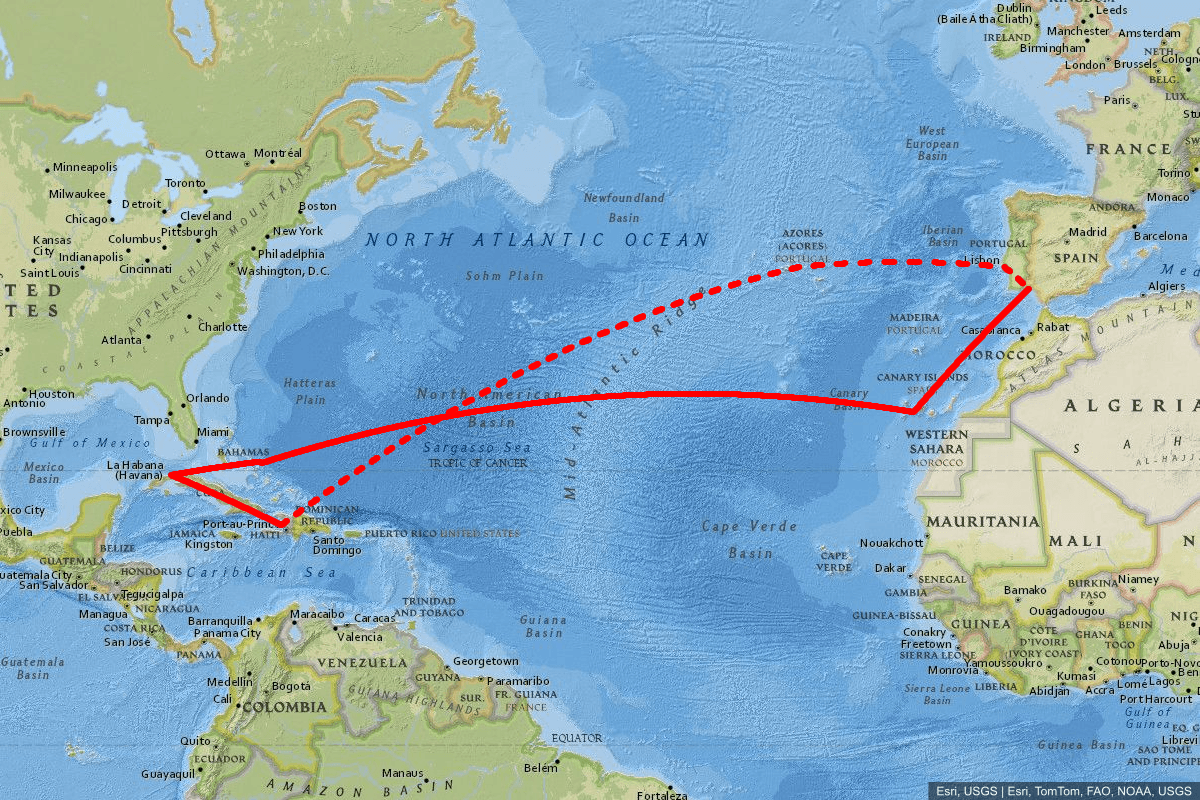

Multiple Encoded Polylines

http://localhost:3000/api/staticmaps?width=1200&height=800&format=png&basemap=national-geographic&polyline=weight:6|color:red|kvcbFfdwi@fosv@fnt|@ntsWzqc}Ik_ZrpCrqrErubo@j`cXsgbz@&polyline=weight:6|color:red|strokeDasharray:10,15|_}}rB~evzLs}iwBseqtG?_{jmBfddHc~_L

🔲 Polygons

To add a polygon, use the polygon parameter in this format:

polygon=polygonStyle|polygonCoord1|polygonCoord2|...

polygonCoord: List of coordinates in lat, lon format, separated by |. The first and last coordinates should be the same to close the polygon.

polygonStyle: Customize the polygon with:

Parameter	Default	Description
`color`	`#4874db`	Defines the stroke color of the polygon.
`weight`	`5`	Sets the stroke width of the polygon.
`fill`		Specifies the fill color of the polygon.
`strokeDasharray`	(none)	Pattern of dashes and gaps, e.g., `5,5` see stroke-dasharray.

Example: Polygon with color 4874db, weight 7, and fill eb7a34

http://localhost:3000/api/staticmaps?width=800&height=800&basemap=satellite&polygon=color:332fd0|weight:3|fill:00FF003F|54.82446670532232,9.421944618225211|54.81986236572277,9.426388740539608|54.818473815918026,9.426388740539608|54.8165283203125,9.428054809570256|54.814861297607365,9.428054809570256|54.812637329101676,9.431389808654785|54.81124877929693,9.43194580078125|54.81069564819336,9.435277938842773|54.80847167968744,9.43972206115734|54.80736160278332,9.43972206115734|54.806526184082145,9.43861007690441|54.8051376342774,9.435277938842773|54.803470611572266,9.435277938842773|54.802917480468864,9.43194580078125|54.800971984863395,9.429166793823185|54.79875183105469,9.429720878601074|54.79375076293945,9.434721946716252|54.7926406860351,9.434721946716252|54.791805267333984,9.433055877685604|54.791526794433594,9.43416786193859|54.78985977172863,9.43416786193859|54.788471221923885,9.435277938842773|54.788749694824276,9.436389923095703|54.79013824462902,9.435833930969238|54.79041671752941,9.436944007873592|54.79569625854498,9.436945915222168|54.79680633544933,9.435833930969238|54.79902648925787,9.435833930969238|54.79930496215826,9.436944007873592|54.80152893066412,9.436944007873592|54.803195953369254,9.438055992126522|54.80458450317383,9.43972206115734|54.80764007568365,9.453055381774902|54.81013870239258,9.454723358154297|54.81124877929693,9.454723358154297|54.81124877929693,9.453055381774902|54.812362670898494,9.453055381774902|54.81402587890625,9.455277442932186|54.81541824340832,9.455277442932186|54.8165283203125,9.457498550415039|54.81735992431646,9.456946372985897|54.81930541992199,9.460277557373104|54.82041549682617,9.460833549499569|54.82152938842768,9.464165687561035|54.82263946533203,9.4647216796875|54.82291793823242,9.468609809875431|54.823749542236385,9.469721794128361|54.824028015136776,9.473056793212947|54.82291793823242,9.47583293914795|54.82319259643566,9.483611106872559|54.82273864746105,9.482230186462402|54.815219879150504,9.482759475708065|54.81542968750006,9.488989830017147|54.80834197998047,9.501990318298454|54.80062103271496,9.496249198913574|54.79687118530285,9.496500015258846|54.793331146240234,9.502988815307617|54.789379119873104,9.496978759765625|54.77442932128912,9.497907638549862|54.77051162719732,9.491870880126896|54.7703094482423,9.48559856414795|54.773860931396484,9.479109764099235|54.77759170532232,9.478879928588924|54.77740097045904,9.472619056701717|54.77347946166992,9.466569900512752|54.76604080200195,9.466990470886344|54.765670776367244,9.454428672790527|54.75452041625982,9.4550399780274|54.75062942504883,9.448939323425293|54.75045013427746,9.44265079498291|54.75416183471691,9.442468643188477|54.75226974487316,9.373150825500545|54.75595855712902,9.372980117797795|54.76689147949213,9.366157531738338|54.77040863037115,9.359689712524414|54.777629852295036,9.353049278259391|54.78133010864258,9.352879524230957|54.78186035156256,9.371758460998592|54.78573989868164,9.377868652343864|54.789451599121094,9.377679824829158|54.78963851928722,9.383960723876953|54.79391860961914,9.402589797973633|54.80508041381847,9.401970863342285|54.816478729248104,9.40755939483654|54.82001113891596,9.401079177856445|54.823760986328125,9.400839805603084|54.82446670532232,9.421944618225211&polygon=color:FF5733|weight:2|fill:FF00003F|54.780,9.390|54.782,9.392|54.784,9.391|54.785,9.389|54.784,9.387|54.782,9.386|54.780,9.387|54.779,9.388|54.780,9.390

📍 Markers

To add one or more markers, use the markers parameter in this format:

markers=markerStyle|markerCoord1|markerCoord2|...

markerCoord: Coordinates for each marker in lat, lon format, separated by |. You need at least one coordinate.

markerStyle: Customize the marker with:

Parameter	Default	Description
`img`	(optional)	URL or file path for a custom marker image.
`color`	`#d9534f`	Color of the Marker.
`width`	`28`	Width of marker image in px.
`height`	`28`	Height of marker image in px.
`drawWidth`	`width`	Resize marker image to width in px.
`drawHeight`	`height`	Resize marker image to height in px.
`offsetX`	`13.5`	Horizontal offset for the marker position.
`offsetY`	`27.5`	Vertical offset for the marker position.
`resizeMode`	`cover`	Applied resize method if needed. See: https://sharp.pixelplumbing.com/api-resize

Example: Multiple Markers

http://localhost:3000/api/staticmaps?width=1200&height=800&format=png&basemap=national-geographic&markers=color:red|37.2159,-7.0050|28.0997,-17.1092|24.0617,-74.4767|24.2000,-74.5000|23.1167,-82.3833|19.0000,-72.7000|38.7169,-27.2231|38.7169,-9.1399|37.2159,-7.0050&markers=color:green|36.5271,-6.2886|15.4150,-61.3710|16.2650,-61.5510|18.4655,-66.1057|18.4861,-69.9312|21.5218,-77.7812&markers=color:orange|36.7781,-6.3515|14.9167,-23.5167|10.6000,-61.2000|8.5833,-62.4000|18.4861,-69.9312&markers=color:blue|36.5271,-6.2886|17.9352,-76.8419|15.9194,-85.9597|9.3547,-79.9014|21.5218,-77.7812|36.5271,-6.2886

⚪ Circles

To add a circle, use the circle parameter in this format:

circle=circleStyle|circleCoord

circleCoord: Coordinates for the circle's center in lat, lon format, separated by |. You need at least one coordinate.

circleStyle: Customize the circle with:

Parameter	Default	Description
`radius`	(required)	Specifies the radius of the element.
`color`	`#0000bb`	Defines the stroke color of the element.
`width`	`3`	Sets the stroke width of the element.
`fill`	`{color}`	Specifies the fill color of the element.

Example: Circle with a radius of 20 meters.

http://localhost:3000/api/staticmaps?width=600&height=600&basemap=osm&circle=radius:20|color:4874dbb2|fill:0000bbbd|width:10|48.726304979176675,-3.9829935637739382

🔤 Text

To add text, use the text parameter in this format:

text=textStyle|textCoord

textCoord: Coordinates for the text's anchor in lat, lon format.

textStyle: Customize the text with:

Parameter	Default	Description
`text`	(required)	The text to render.
`color`	`#000000BB`	Stroke color of the text
`width`	`1`	Stroke width of the text
`fill`	`#000000`	Fill color of the text
`size`	`12`	Font-size of the text
`font`	`Arial`	Font-family of the text
`anchor`	`start`	Determines the text anchor alignment.
`offsetX`	`0`	Horizontal offset relative to the coordinate.
`offsetY`	`0`	Vertical offset relative to the coordinate.

Example: Text "Hello World" with custom styling.

http://localhost:3000/api/staticmaps?width=600&height=600&text=text:Hello%20World|size:20|48.8566,2.3522

🔍 More usage examples

Example with width=500, height=500, center=-73.99515,40.76761, zoom=10, basemap=national-geographic

http://localhost:3000/api/staticmaps?width=500&height=500¢er=40.76761,-73.99515&zoom=10&format=webp&basemap=national-geographic

Multiple Markers and multiple Polylines with encodedPolyline aswell as lon,lat coordinatesExample and a custom attribution

http://localhost:3000/api/staticmaps?width=1200&height=800&format=png&basemap=national-geographic&polyline=weight:6|color:red|kvcbFfdwi@fosv@fnt|@ntsWzqc}Ik_ZrpCrqrErubo@j`cXsgbz@&polyline=weight:6|color:red|strokeDasharray:10,15|_}}rB~evzLs}iwBseqtG?_{jmBfddHc~_L&polyline=weight:6|color:green|ke}}Evfke@rmz_C~geoIo_eD~cb@cxlLzqxZw_CjdjVc|oQne|n@&polyline=weight:6|color:orange|cfn_Fzowe@vxldCnqwgBjbjYr__eFj{hK~jiFocm{@~|}l@@&polyline=weight:6|color:blue|ke}}Evfke@jfnpBb}rmLvuhKfysv@jdag@kg~c@kkgiAgb}KcvqzAwkjsL&text=text:First%20Voyage%20(1492%E2%80%931493)|size:20|color:red|38.7169,-27.2231&text=text:Second%20Voyage%20(1493%E2%80%931496)|size:20|color:green|offsetX:-230|18.4655,%20-66.1057&text=text:Third%20Voyage%20(1498%E2%80%931500)|size:20|offsetY:-10|color:orange|8.5833,-62.4000&&text=text:Fourth%20Voyage%20(1502%E2%80%931504)|size:20|color:blue|offsetY:-30|offsetX:50|9.3547,-79.9014&markers=color:red|37.2159,-7.0050|28.0997,-17.1092|24.0617,-74.4767|24.2000,-74.5000|23.1167,-82.3833|19.0000,-72.7000|38.7169,-27.2231|38.7169,-9.1399|37.2159,-7.0050&markers=color:green|36.5271,-6.2886|15.4150,-61.3710|16.2650,-61.5510|18.4655,-66.1057|18.4861,-69.9312|21.5218,-77.7812&markers=color:orange|36.7781,-6.3515|14.9167,-23.5167|10.6000,-61.2000|8.5833,-62.4000|18.4861,-69.9312&markers=color:blue|36.5271,-6.2886|17.9352,-76.8419|15.9194,-85.9597|9.3547,-79.9014|21.5218,-77.7812|36.5271,-6.2886&attribution=text:Esri,%20USGS%20Esri,%20TomTom,%20FAO,%20NOAA,%20USGS

Also, POST requests are supported:

Example with markers, polyline, polygon and circle

curl -X POST http://localhost:3000/api/staticmaps \ -H "Content-Type: application/json" \ -H "x-api-key: yourSecretApiKeyHere" \ -d '{ "width": 600, "height": 600, "polyline": [ { "weight": 6, "color": "#0000ff", "coords": [ [-74.006, 40.7128], [18.424055, -33.924869] ] }, { "weight": 6, "color": "red", "coords": [ [2.352222, 48.856614], [18.424055, -33.924869] ] } ], "markers": { "coords": [ [2.352222, 48.856614], [-74.006, 40.7128], [18.424055, -33.924869] ] } }' --output custom_map.png

💻 Development

To run the project locally, follow these steps:

Clone the repository:

git clone https://github.com/dietrichmax/docker-staticmaps

Install the dependencies:

npm install

Start the development server:

npm run dev

Enjoy building and customizing your static maps! 🌍✨
