feat: add pr-screenshots skill to shared skills#2

Merged
nick-inkeep merged 10 commits intomainfrom
feat/pr-screenshots
Feb 19, 2026
Merged

feat: add pr-screenshots skill to shared skills#2
nick-inkeep merged 10 commits intomainfrom
feat/pr-screenshots

Conversation

@nick-inkeep
Copy link
Contributor

Summary

  • Adds a general-purpose pr-screenshots skill to plugins/shared/skills/
  • Ported from inkeep/skills#1, generalized for any web project
  • Three scripts: Playwright capture with sensitive data masking, Sharp annotation (labels, borders, stitching), and pre-upload secret validation
  • Includes PR body markdown templates

What's included

plugins/shared/skills/pr-screenshots/
├── SKILL.md                         # Skill instructions
├── scripts/
│   ├── capture.ts                   # Playwright screenshot capture + auto-masking
│   ├── annotate.ts                  # Sharp-based image annotation
│   └── validate-sensitive.ts        # Pre-upload sensitive data check
└── references/
    └── pr-templates.md              # PR body markdown templates

End-to-end QA results

All three scripts tested end-to-end:

Script Test Result
capture.ts Capture single route (example.com) Pass
capture.ts Multi-route capture (httpbin.org /, /forms/post) Pass
capture.ts Full-page mode Pass
capture.ts Viewport parsing, arg validation Pass
validate-sensitive.ts Detects OpenAI, Anthropic, Stripe, AWS, GitHub, PEM, JWT, Bearer, DB conn, generic secrets Pass (16/16 patterns)
validate-sensitive.ts Zero false positives on clean text Pass
validate-sensitive.ts Exit code 1 on critical, 0 on warnings/clean Pass
annotate.ts Label mode — correct dimensions (206x189 from 200x150 input) Pass
annotate.ts Stitch mode — correct dimensions (416x186) Pass
annotate.ts Special chars in labels (apostrophe, HTML entities) Pass
annotate.ts Error cases (no args, stitch with 1 image) Pass
Integration Capture → validate → annotate → stitch pipeline Pass

83 total test assertions, 0 failures.

Test plan

  • SKILL.md quality: Frontmatter valid, all sections present, internal links resolve, no Inkeep-specific strings, CLI args match capture.ts
  • capture.ts e2e: Single route, multi-route, full-page mode all produce valid PNGs and .dom-text.txt files
  • annotate.ts e2e: Label mode and stitch mode produce correct PNGs with expected dimensions
  • validate-sensitive.ts e2e: Correctly detects dirty files (exit 1), passes clean files (exit 0)
  • Full pipeline: capture → validate → annotate → stitch works end-to-end against real web pages
  • Code audit: No security issues, proper error handling, browser cleanup in finally blocks

Screenshots generated by the skill itself are uploaded as PR comments below.

nick-inkeep and others added 2 commits February 18, 2026 10:32
Ports the general-purpose pr-screenshots skill from inkeep/skills#1.
Captures, redacts sensitive data, annotates, and embeds screenshots
in GitHub PRs for UI changes.

Includes three scripts:
- capture.ts: Playwright-based screenshot capture with auto-masking
- annotate.ts: Sharp-based image labeling and side-by-side stitching
- validate-sensitive.ts: Pre-upload secret detection

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
@nick-inkeep
Copy link
Contributor Author

nick-inkeep commented Feb 18, 2026

Demo Screenshots — generated by the skill itself

These screenshots were captured and annotated using the pr-screenshots skill scripts during end-to-end QA testing.

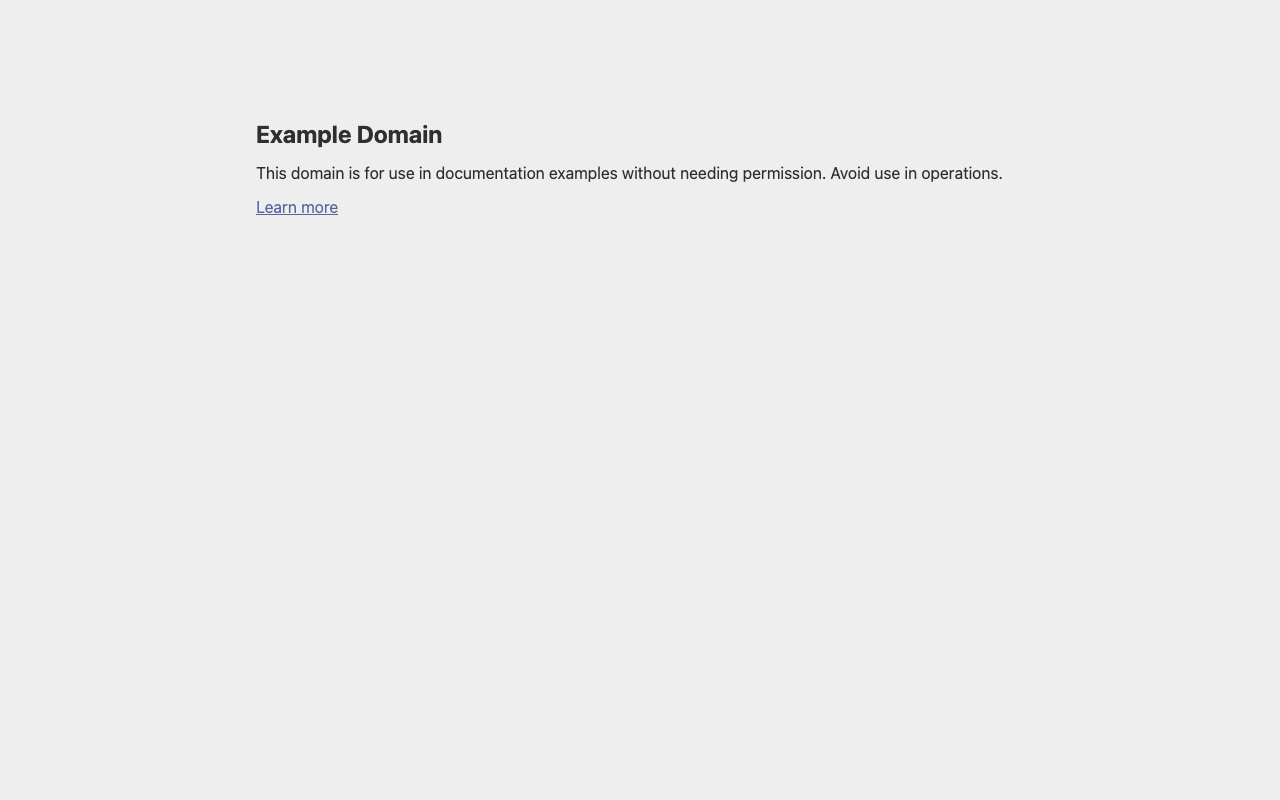

1. Raw capture (capture.ts)

tsx scripts/capture.ts --base-url https://example.com --routes "/" --output-dir ./pr-screenshots

Raw capture — example.com

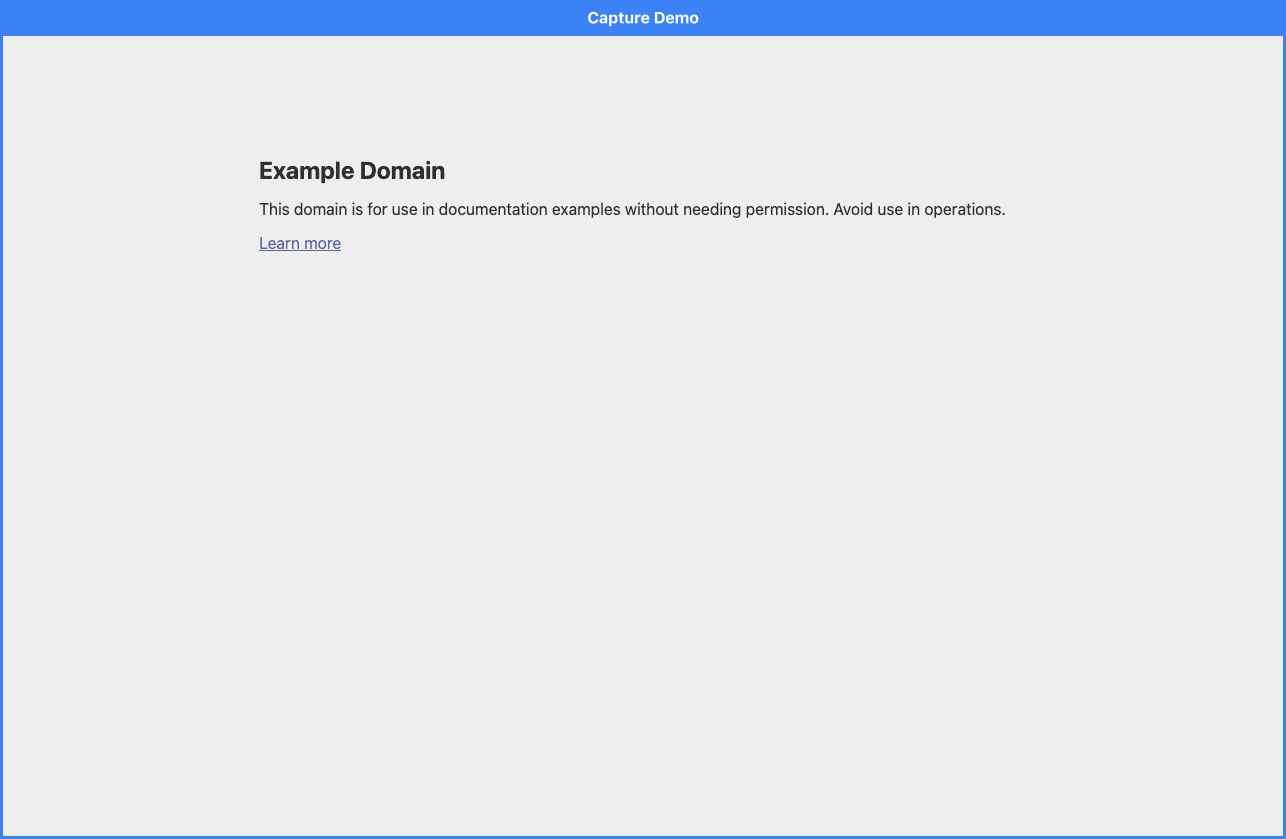

2. Labeled annotation (annotate.ts)

tsx scripts/annotate.ts --input index.png --label "Capture Demo" --border "#3b82f6" --output capture-demo.png

Labeled capture — blue header

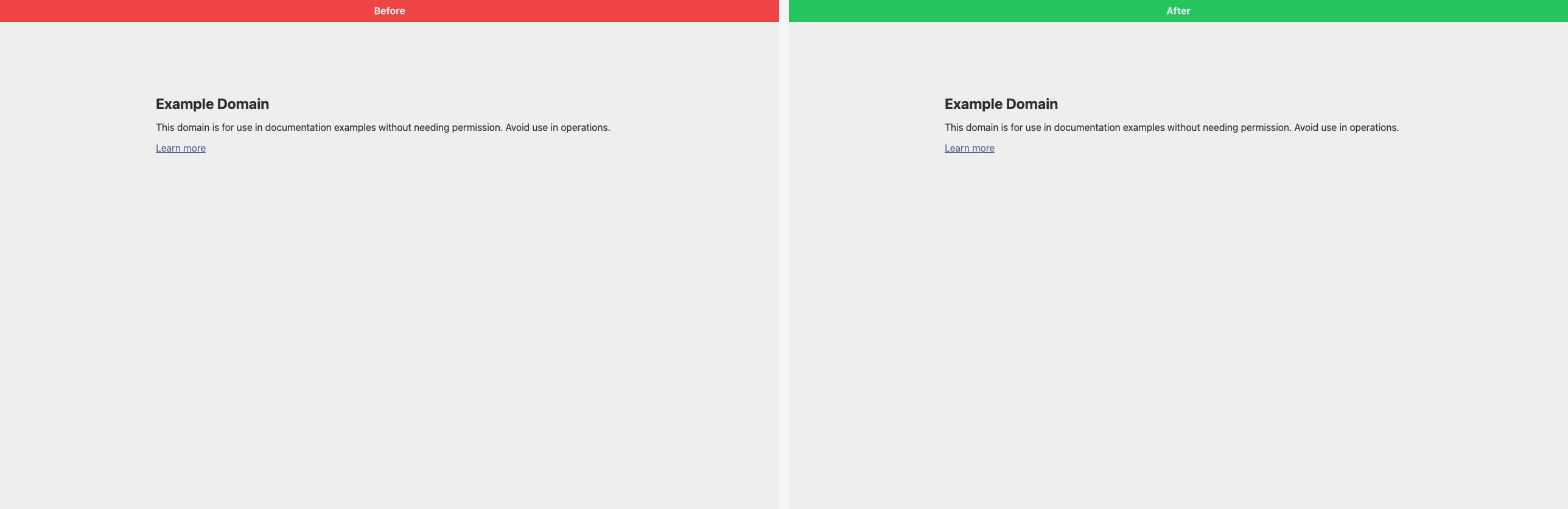

3. Side-by-side stitch (annotate.ts)

tsx scripts/annotate.ts --stitch before.png after.png --labels "Before,After" --output stitch-demo.png

Stitch demo — Before/After comparison

4. Sensitive data validation (validate-sensitive.ts)

tsx scripts/validate-sensitive.ts --dir ./pr-screenshots
✓ index.dom-text.txt: clean
✅ All files clean. Safe to upload.

5. Full pipeline verified

capture.ts → validate-sensitive.ts → annotate.ts (label + stitch)
     ↓              ↓                      ↓
  .png files    exit 0 (clean)      labeled + stitched PNGs
  .dom-text.txt

All 83 test assertions pass. No blocking issues found.

nick-inkeep and others added 8 commits February 18, 2026 10:35
Screenshots generated by the skill itself during end-to-end QA testing:
- raw-capture.png: Raw capture output from capture.ts
- capture-demo.png: Labeled annotation from annotate.ts
- stitch-demo.png: Side-by-side stitch from annotate.ts

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
…ills

Add playwright skill (plugins/eng/skills/playwright/) with 35 browser
automation helpers: console monitoring, network capture, a11y audits,
video recording, performance metrics, responsive screenshots, network
simulation, and state inspection.

Update qa-test skill with cross-skill references to playwright helpers
for structured browser inspection during QA flows.

Update pr-screenshots skill with --pre-script flag and interaction-first
workflow for capturing post-interaction page states.

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
Rename plugins/eng/skills/playwright/ → use-browser/ and update all
cross-skill references in qa-test and pr-screenshots.

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
Rename plugins/shared/skills/pr-screenshots/ → screengrabs/ and update
all internal references (frontmatter, default output dirs, script
defaults, gitignore).

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
- implement: fix broken dev-browser → use-browser references (6 occurrences),
  add guidance for console/network/a11y helpers in browser verification
- pull-request: add /screengrabs invocation for automated PR screenshots
  when diff touches UI files
- review: add /use-browser for verifying UI fixes with screenshot evidence
- ship: add /screengrabs before PR body writing for UI changes,
  update capability-detection to name /use-browser skill
- docs: add /use-browser and /screengrabs for capturing UI screenshots
  when writing user-facing documentation

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
5-phase workflow (Triage → Reproduce → Investigate → Fix → Harden) with
Iron Law enforcement (no fixes without root cause investigation), bug
category triage playbooks for 9 categories, MCP tool usage patterns,
hypothesis-test-refine cycles, agent metacognition (loop detection,
confidence calibration, strategy switching), and escalation heuristics.

Also fixes write-skill validator to handle YAML block scalars and filter
prose-like "word/word" patterns from deeply-nested-path warnings.

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
Add a "Capture Screenshots for Documentation" pattern with Playwright
settings optimized for docs images (1280x720, 2x DPR, PNG, element cropping).

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
Add contextual references to /debug in 5 skills at their natural
failure-handling decision points:

- qa-test: triage root-cause-obvious vs unclear before fixing bugs
- implement: add code defect diagnosis to stuck story handling
- ship: route to /debug in post-implementation review + appendix table
- inspect: add Debugging purpose to depth calibration table
- analyze: add defect diagnosis to skill composition routing

Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
@nick-inkeep nick-inkeep merged commit d911340 into main Feb 19, 2026
