SaltyPi

A super overcomplicated solution to forgetting to fill your water softener

Set Up

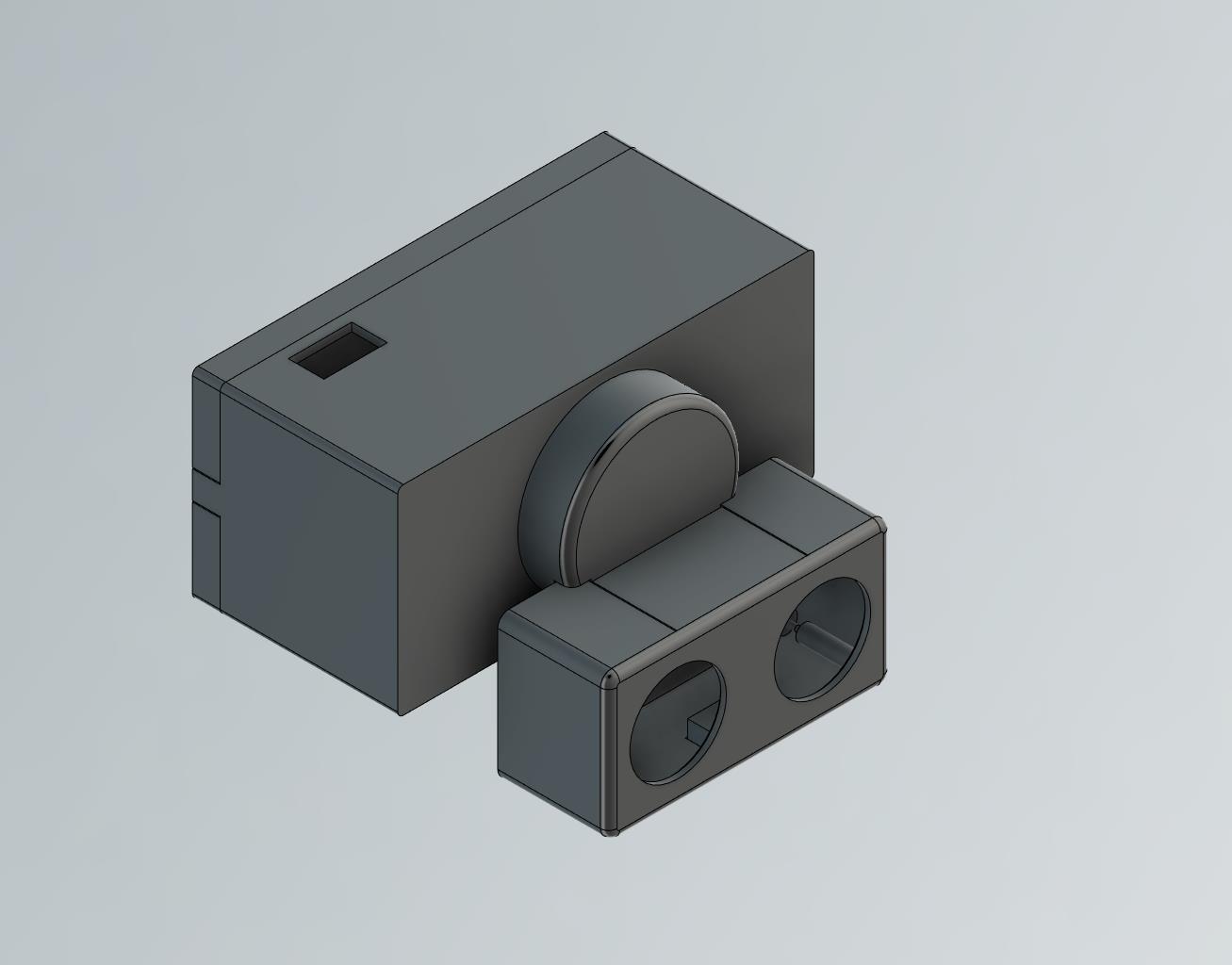

Print enclosure from STLs under ./salt-get-measure/model and assemble Pi Zero W connected to HC-SR04 Sensor.

Install headless Rasbian Image onto Pi Zero W along with Python distutils and Git. Clone this repo into Pi.

Each module installs via sudo sh ./scripts/install.sh, run from the module directory. Sudo required for cron

Salt Get API Requires DB schema generation prior to running sh ./scripts/gen-schema.sh (also from module dir)

Each module configured via .env after installing. By default, modules communicate on localhost:5000

Add the following cron-tabs after installing and reboot (sudo crontab -e)

@reboot cd /home/pi/salt-get/salt-get-api && sh ./scripts/cron_task.sh > /var/log/salt-get-api.log 2>&1
0 10 * * * cd /home/pi/salt-get/salt-get-measure && sh ./scripts/cron_task.sh > /var/log/salt-get-measure.log 2>&1
0 11 * * * cd /home/pi/salt-get/salt-get-monitor && sh ./scripts/cron_task.sh > /var/log/salt-get-monitor.log 2>&1

Settings

Settings maintained via settings API's. webhook_url must be set before monitoring can post updates

See Postman collection at ./salt-get-api/postman_collection.json for update / read settings examples.

• webhook_url: URL to post notifications to via monitoring
• warn_at: distance that, once reached, monitoring will get salty over
• recovery_delta: delta that, when distance is reduced by, monitoring will no longer be salty

Modules

salt-get-api

A Flask API backed by SQLlite3 for storing distance measurements

salt-get-monitor

A Python task, messaging via webhook when the latest measurement levels rise out of bounds

salt-get-measure

A Python task, using an HC-SR04 Sensor sensor to measure distance levels.
