Session 1 - Basic in Texture

The session covers the basic of Texture that is the introduction of ASDisplayNode and how to use it along with node container. Also we will learn how to build a simple layout with layoutSpecBlock

Guide

This session is labeled under Start inside the Session 1 - Basic folder in the Xcode project example. We will code together on the subsection Rendering Component in Texture Way.

Rendering Component in UIKit Way

Before we learn the basics of Texture, it is better we take a look at how UIKit structuring the views to rendering component on screen first.

1. Run the project
2. Tap on Basic UIKit.

On the screen, you can see a colored box centering on the page. Open the BasicUIKitViewController.swift to see the implementation. You may be familiar with the code, how to set up the viewcontroller, the child view, and the constraints. We will create something similar to that by using Texture, so let's get started!

Rendering Component in Texture Way

A. Open BasicTextureViewController.swift

The file will look like this:

import UIKit

class BasicTextureViewController: UIViewController {

}

The BasicTextureViewController still inherit the UIViewController so we need to change the subclass

B. Change the subclass of ViewController into ASDKViewController

Before we change the subclass, we need to import the framework Texture by adding import AsyncDisplayKit. Next we change the subclass viewController into ASDKViewController<ASDisplayNode>. Why we do have a generic on our ViewController?. This generic used to determined which type of root node we want to use. In this case we just need a plain ASDisplayNode as our root node.

import AsyncDisplayKit
import UIKit

class BasicTextureViewController: ASDKViewController<ASDisplayNode> {

}

Note: In the Create Product Card List Session we will configure the root node with a different type of ASDisplayNode

C. Add initializer to the ViewController

Next, we need to create an initializer for our viewController. We can start by adding an empty init() but we need to add the override keyword before the init. The compiler will throw an error that we need to satisfy by adding required init?(coder: NSCoder)

......

class BasicTextureViewController: ASDKViewController<ASDisplayNode> {
    override init() {
        super.init()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }
}

C. Create a root Node for ViewController

We have successfully changed our ViewController to ASDKViewController but the viewController shows a blank view with a black color background. That means our root node has still not been configured yet, let's start by changing the init into super.init(node: ASDisplayNode).

The parameter node means that we can use any kind of ASDisplayNode as our root node but let's stick with a simple ASDisplayNode for now.

We can change the background color or any property of the root node by accessing the node. property in our ViewController. It similar to when we are accessing the view. property in UIViewController. Let's change the background color to white color

......
class BasicTextureViewController: ASDKViewController<ASDisplayNode> {
    override init() {
        super.init(node: ASDisplayNode())
        node.backgroundColor = .white
    }
    ......
}

D. Add the rectangle box

Now the fun part begins, we will create a rectangle box as the child of ViewController. Create the box by initialize ASDisplayNode().To make the box see clearly on the screen we can add some color and set the size of the box.

For the size, we can use frame property for now and let's start by adding a simple size by adding subNode.frame = CGRect(x: 0, y: 0, width: 300, height: 300).

After that, add your box into your viewController by using node.addSubNode(subNode), It similar to UIKit view.addSubview.

......
class BasicTextureViewController: ASDKViewController<ASDisplayNode> {
    override init() {
        super.init(node: ASDisplayNode())
        node.backgroundColor = .white

        let subNode = ASDisplayNode()
        subNode.backgroundColor = .orange
        subNode.frame = CGRect(x: 0, y: 0, width: 300, height: 300)

        node.addSubnode(subNode)
    }
    ......
}

E. Configure Layout by using LayoutSpecBlock

The box is showing up, but what are the advantages of layouting in Texture? it looks similar to UIKit.

Introduction: LayoutSpecBlock LayoutSpecBlock is a closure where you play around with the layout. This is where the Flexbox concept is applied. The LayoutSpecBlock has 2 parameters:

• node: the node itself
• constrainedSize: the size of the root node

We don't need those 2 parameters for now so just omit them using _, _. The block needs a return type of ASLayoutSpec which is the kind of layout we want to use. There are many types of layout that we will learn in this workshop but for now, we will use ASCenterLayout to center the node.

......
class BasicTextureViewController: ASDKViewController<ASDisplayNode> {
    override init() {
        super.init(node: ASDisplayNode())
        node.backgroundColor = .white

        let subNode = ASDisplayNode()
        subNode.backgroundColor = .orange
        subNode.frame = CGRect(x: 0, y: 0, width: 300, height: 300)

        node.addSubnode(subNode)
        node.layoutSpecBlock = { _, _ in
            return ASCenterLayoutSpec(centeringOptions: .XY,
                                      sizingOptions: [],
                                      child: subNode)
        }
    }
    ......
}

The ASCenterLayout has 3 parameters:

• centeringOptions: the position of the child, We use the .XY value that means we will center the child on Horizontal and Vertical position.
• sizingOptions: how much space the center spec will take up. We don't need this configuration right now instead we can use an empty value [].
• child: the node that will be centered, in this case, is subNode object.

The result is not the same as we not expected, the child node covers the whole screen, to fix that we can go to the next step.

F. Adjust box size by using style.preferredSize

Why did the child node cover the whole screen? the answer is we haven't set the size yet. We already set the size before on .frame but because right now we are using layoutSpecBlock the frame value is no longer valid. The goal of layoutSpecBlock is to apply the FlexBox concept which means we don't need to calculate the position & size manually. So let's fix the size. By adding the style.preferredSize, we specified a constant size to our child node.

......
class BasicTextureViewController: ASDKViewController<ASDisplayNode> {
    override init() {
        super.init(node: ASDisplayNode())
        node.backgroundColor = .white

        let subNode = ASDisplayNode()
        subNode.backgroundColor = .orange
        // Change this
        // subNode.frame = CGRect(x: 0, y: 0, width: 300, height: 300)
        // Into this
        subNode.style.preferredSize = CGSize(width: 300, height: 300)

        node.addSubnode(subNode)
        node.layoutSpecBlock = { _, _ in
            return ASCenterLayoutSpec(centeringOptions: .XY,
                                      sizingOptions: [],
                                      child: subNode)
        }
    }
   ......
}

Cool! Finally, we have successfully created a simple component using Texture by creating a node, plug it into viewController, and configure the layout using layoutSpecBlock. In the next session, we will explore various LayoutSpecs!

Session 2 - Layouting with LayoutSpec in Texture

This session covers the various types of LayoutSpec that we can use to configure the layouting of elements in our ViewController as well as creating a custom/reusable node of ASDisplayNode type.

Guide

This session is labelled under ASLayoutSpec - Interactive in the XCode project example. The files used in this session is under Session 2 - InteractiveUI.

LayoutSpec

• For each LayoutSpec (e.g.: ASInsetLayoutSpec), there will be a folder containing 2 files.
• FooLayoutVC contains the real implementation of the LayoutSpec
• FooLayoutVCInteractive contains a bordered sandbox which displays the view of FooLayoutVC scaled to the size of the sandbox
• FooLayoutVCInteractive also contains a set of labelled buttons for the audience to configure the arguments used in the relative LayoutSpec

Layout Breakdown

We have created 2 ViewControllers that implement a layout that uses a combination of different LayoutSpecs. In this session, we hope to provide the audience with layout examples that may relate more to real-life cases when developing an app, which may help the audience understand more about the behaviours of various LayoutSpecs and how to achieve a specific layout by combining them.

Exercise

The goal of the exercises in this session is for the audience to re-create the layout provided in the example (top-right button in navigation bar of every Exercise page), all the elements (nodes) are provided

• Exercise 1 - Learn how to create the layout using a combination of ASStackLayoutSpec and ASInsetLayoutSpec
• Exercise 2 - Edit the layout from Exercise 1 by adding ASBackgroundLayoutSpec to the layout
• Exercise 3 - Learn how to create a reusable custom node of ASDisplayNode type and achieve the same result as Exercise 2, but only instantiating CustomNode instead of a bunch of elements in the ViewController

Notes

• Cheats for Exercise 1, Exercise 2, and Exercise 3 are provided under Session 2 - InteractiveUI/Components/Cheats
• It is recommended that the audience do not look at the cheats until the exercises are complete or they are completely stuck

Session 3 - Create a List of Product Cards

This session breaks down the process of creating a component using Texture.

Product Card

Product Card is one of the most used components in Tokopedia App. It is used to represent the description of a product. However, every product has different amount of information. Thus, the presentation of each Product Card may vary.

Expectation

After this session, you are expected to learn three things using Texture:

A. How to create a dynamic component

As stated earlier, not every Product Card displays the same amount of information. This session shows how to create a Product Card based on the information provided.

B. How to show a list of components

This session shows how to display a collection of products using List format.

C. How to perform a live update on a component

This session shows how easy it is to update the UI of a Texture component.

Table of Contents

A. Open ProductCardNode.swift

B. Start Small

C. Create Shop Row

D. Create Review Row

E. Create Free Shipping Row

F. Add Wishlist

G. Summary

H. Move ProductCard to Lists

I. Create Live Update on Component

Creating a Product Card

This session is covered in the folder labelled as Session 3 - Create Product Card

Before we start, to have a better picture on what we are going to create, do the followings.

1. Run the project
2. Tap on Create Product Card.
3. Then, tap on Expected

Also, take a look at the information model.

1. Go back to Xcode
2. Open Product.swift

Now, let's start!

A. Open Start/ProductCardNode.swift

This is the main class of the Product Card component.

B. Start Small

Let's put product image, name and price first.

1. Add the nodes as properties

   let imageNode = ASNetworkImageNode()
   let nameNode = ASTextNode()
   let priceNode = ASTextNode()

2. Setup the nodes

   imageNode.url = model.imageUrl
   imageNode.style.preferredSize = CGSize(width: 80, height: 80)

   nameNode.attributedText = NSAttributedString(
       string: description.name,
       attributes: [
           NSAttributedString.Key.font : UIFont.systemFont(ofSize: 12, weight: .regular)
       ]
   )

   priceNode.attributedText = NSAttributedString(
       string: description.price,
       attributes: [
           .font: UIFont.systemFont(ofSize: 14, weight: .bold)
       ]
   )

3. Arrange it in LayoutSpecThatFits

   let verticalStack = ASStackLayoutSpec(
       direction: .vertical,
       spacing: 10,
       justifyContent: .start,
       alignItems: .start,
       children: [
           nameNode,
           priceNode
       ]
   )

   let mainStack = ASStackLayoutSpec(
       direction: .horizontal,
       spacing: 8,
       justifyContent: .start,
       alignItems: .start,
       children: [
           imageNode,
           verticalStack
       ]
   )

   let mainInset = ASInsetLayoutSpec(
       insets: UIEdgeInsets(top: 8, left: 8, bottom: 8, right: 8),
       child: mainStack
   )

   return mainInset

4. Run the project and see the result

C. Create Shop Row

Before we continue, it is better to refactor the right hand side of the Product Card into a new class. Else, we might have a bloated code like this.

override func layoutSpecThatFits(_ constrainedSize: ASSizeRange) -> ASLayoutSpec {
    let shopStack = ASStackLayoutSpec(
        direction: .horizontal,
        spacing: 4,
        justifyContent: .start,
        alignItems: .start,
        children: [
            badgeNode,
            nameNode
        ]
    )

    let verticalStack = ASStackLayoutSpec(
        direction: .vertical,
        spacing: 10,
        justifyContent: .start,
        alignItems: .start,
        children: [
            nameNode,
            priceNode,
            shopNode
        ]
    )

    let mainStack = ASStackLayoutSpec(
        direction: .horizontal,
        spacing: 8,
        justifyContent: .start,
        alignItems: .start,
        children: [
            imageNode,
            verticalStack
        ]
    )

    let mainInset = ASInsetLayoutSpec(
        insets: UIEdgeInsets(top: 8, left: 8, bottom: 8, right: 8),
        child: mainStack
    )

    return mainInset
}

So, let's move the vertical stack

1. Cut this

   let nameNode = ASTextNode()
   let priceNode = ASTextNode()

2. This

   nameNode.attributedText = NSAttributedString(
       string: description.name,
       attributes: [
           NSAttributedString.Key.font : UIFont.systemFont(ofSize: 12, weight: .regular)
       ]
   )

   priceNode.attributedText = NSAttributedString(
       string: description.price,
       attributes: [
           .font: UIFont.systemFont(ofSize: 14, weight: .bold)
       ]
   )

3. And This

   let verticalStack = ASStackLayoutSpec(
       direction: .vertical,
       spacing: 10,
       justifyContent: .start,
       alignItems: .start,
       children: [
           nameNode,
           priceNode
       ]
   )

4. Then paste it to Start/Components/ProductCardDescriptionNode.swift

5. Add this node into Start/ProductCardNode.swift

   let descriptionNode: ProductCardDescriptionNode

   descriptionNode = ProductCardDescriptionNode(description: model.description)

   let mainStack = ASStackLayoutSpec(
       direction: .horizontal,
       spacing: 8,
       justifyContent: .start,
       alignItems: .start,
       children: [
           imageNode,
           descriptionNode
       ]
   )

Phew, now that we got that out of the way, let's... WAIT! One more thing. This shop row is a bit different from name row and price row, because the badge may or may not be displayed based on the shop type.

Please take a look at Start/CreateProductCardViewController.swift. That is the data that we will feed into the product card. Let's change the shop type from .officialStore to .none. After that, run the project again and take a look at the expected Product Card. Something is missing...

Okay now, let's continue :).

1. Open Start/Components/ProductCardShopNode We will create the shop row here

2. Add the nodes as properties

   let badgeNode: ASImageNode?
   let nameNode = ASTextNode()

   You might notice the optional, what is that for? Well, remember that the badge can disappear?

3. Setup the nodes

   switch shop.type {
       case .officialStore:
           badgeNode = ASImageNode()
           badgeNode.image = UIImage(named: "official_store")
       case .powerMerchant:
           badgeNode = ASImageNode()
           badgeNode.image = UIImage(named: "power_merchant")
       case .none:
           badgeNode = nil
   }

   badgeNode?.style.preferredSize = CGSize(width: 16, height: 16)

   nameNode.attributedText = NSAttributedString(
       string: shop.name,
       attributes: [
           .font: UIFont.systemFont(ofSize: 12, weight: .regular),
           .foregroundColor: UIColor.darkGray
       ]
   )

4. Arrange it in LayoutSpecThatFits

   return ASStackLayoutSpec(
       direction: .horizontal,
       spacing: 4,
       justifyContent: .start,
       alignItems: .start,
       children: [badgeNode, nameNode]
   )

   Oh no, there is an error! The reason is that children expects [ASLayoutElement] not [ASLayoutElement?]. What do we do? We may define a children property before adding it into the stack.

   let children: [ASLayoutElement]
   if let badgeNode = badgeNode { // safe unwrap
       children = [badgeNode, nameNode]
   } else {
       children = [nameNode]
   }

   return ASStackLayoutSpec(
       direction: .horizontal,
       spacing: 4,
       justifyContent: .start,
       alignItems: .start,
       children: children
   )

   Or we can take advantage of Swift's High Order Function compactMap.

   return ASStackLayoutSpec(
       direction: .horizontal,
       spacing: 4,
       justifyContent: .start,
       alignItems: .start,
       children: [badgeNode, nameNode].compactMap { $0 }
   )

   Basically, compactMap filters all nil values out of a collection.

5. Add this node into Start/Components/ProductCardDescriptionNode.swift

   let shopNode: ProductCardShopNode

   shopNode = ProductCardShopNode(shop: description.shop)

   return ASStackLayoutSpec(
       direction: .vertical,
       spacing: 10,
       justifyContent: .start,
       alignItems: .start,
       children: [
           nameNode,
           priceNode,
           shopNode
       ]
   )

6. Run the project and see the result

D. Create Review Row

One thing you might notice about this row is that the stars are stacked horizontally, and then the star stack is stacked again with review count text. This time, there is no need to move the star stack into a new class because the layout is relatively simple.

1. Open Start/Components/ProductCardReviewNode.swift We will create the review row here

2. Add the nodes as properties

   let starNodes: [ASImageNode]
   let reviewCountNode = ASTextNode()

3. Setup the nodes

   var tempStarNodes = [ASImageNode]()

   for index in 1...5 {
       let starNode = ASImageNode()
       starNode.image = UIImage(named: index >= review.rating ? "active_star" : "inactive_star")
       starNode.style.preferredSize = CGSize(width: 11, height: 11)
       tempStarNodes.append(starNode)
   }

   starNodes = tempStarNodes

   reviewCountNode.attributedText = NSAttributedString(
       string: "(\(review.reviewCount))",
       attributes: [
           .font: UIFont.systemFont(ofSize: 12, weight: .regular),
           .foregroundColor: UIColor.gray
       ]
   )

4. Arrange it in LayoutSpecThatFits

   let starStack = ASStackLayoutSpec(
       direction: .horizontal,
       spacing: 1,
       justifyContent: .start,
       alignItems: .start,
       children: starNodes
   )

   let mainStack = ASStackLayoutSpec(
       direction: .horizontal,
       spacing: 2,
       justifyContent: .start,
       alignItems: .center,
       children: [starStack, reviewCountNode]
   )

   return mainStack

5. Add this node into Start/Components/ProductCardDescriptionNode.swift

   let reviewNode: ProductCardReviewNode

   reviewNode = ProductCardReviewNode(review: description.review)

   return ASStackLayoutSpec(
       direction: .vertical,
       spacing: 10,
       justifyContent: .start,
       alignItems: .start,
       children: [
           nameNode,
           priceNode,
           shopNode,
           reviewNode
       ]
   )

6. Run the project and see the result

E. Create Free Shipping Row

This row is optional, as free shipping badge may only be shown if isFreeShipping == true (refer to Start/CreateProductCardViewController.swift). Also, this row only contains one image node so there is no need to create a new node class.

1. Add this node into Start/ProductCardDescriptionNode.swift

   let freeShippingNode: ASImageNode?

   freeShippingNode = description.isFreeShipping? ASImageNode() : nil
   freeShippingNode?.image = UIImage(named: "free_shipping")
   freeShippingNode?.style.preferredSize = CGSize(width: 67, height: 16)

   return ASStackLayoutSpec(
       direction: .vertical,
       spacing: 10,
       justifyContent: .start,
       alignItems: .start,
       children: [
           nameNode,
           priceNode,
           shopNode,
           reviewNode,
           freeShippingNode
       ].compactMap { $0 }
   )

2. Run the project and see the result

3. What if we want to add more spacing between reviewNode and freeShippingNode?

   freeShippingNode?.style.spacingBefore = 4 // there is also spacing after if you need it

F. Add Wishlist

in this part, we will refactor the ImageNode to Class ProductCardImageNode, and we will attach a wishlist in the top corner(inside) of the image

1. Open ProductCardNode.

2. Move imageNode into ProductCardImageNode.

 let imageNode: ASNetworkImageNode
 // in init
 imageNode = ASNetworkImageNode()
 imageNode.url = imageUrl
 imageNode.style.preferredSize = CGSize(width: 80, height: 80)
 imageNode.cornerRadius = 6

3. Add ProductCardWishlistNode

   let wishlistNode = ProductCardWishlistNode()

4. Create layout for ProductCardImageNode

let wishlistInset = ASInsetLayoutSpec(
  insets: UIEdgeInsets(top: 4, left: 4, bottom: .infinity, right: .infinity),
  child: wishlistNode
)

return ASOverlayLayoutSpec(child: imageNode, overlay: wishlistInset)

5. Add ProductCardImageNode into ProductCardNode

   let imageNode: ProductCardImageNode

   imageNode = ProductCardImageNode(imageUrl: model.imageUrl)

   let mainStack = ASStackLayoutSpec(
       direction: .horizontal,
       spacing: 8,
       justifyContent: .start,
       alignItems: .start,
       children: [
           imageNode,
           descriptionNode
       ]
   )

6. Run the project and see the result

G. Summary

Well, there you go. Easy, isn't it? In a nutshell, there are three steps to create a component using Texture:

1. Create properties of all nodes
2. Setup the nodes
3. Arrange it in LayoutSpecThatFits.

Now let's move on to the next step: Creating a List of Product Card.

H. Move ProductCard to Lists

In this part, we will show how to create lists using a Table node with auto height.

Next, we will create a List of Product Card using TableNode.

1. Change ProductCardNode subclass to ASCellNode
2. Open ProductCardStarterViewController
3. Change the ASDKViewController<ASDisplayNode> generic to ASDKViewController<ASTableNode> and super.init to confirm with ASTableNode
4. For use TableNode we need data source to give information what data we will render

 node.dataSource = self

then we need to implement two method numberOfRowsInSection this method give the detail to how many data we will render and nodeForRowAt to give the information which cell will render

 extension ProductCardViewController: ASTableDataSource {
  func tableNode(_ tableNode: ASTableNode, numberOfRowsInSection section: Int) -> Int {
   return model.count
  }

  func tableNode(_ tableNode: ASTableNode, nodeForRowAt indexPath: IndexPath) -> ASCellNode {
   let data = model[indexPath.row]
   return ProductCardFinalNode(model: data)
  }
 }

4. Build and run the app now our ProductCardList seems good with different detail of height but we still find a separtor now we will delete it to delete it we need implement method viewDidLoad because we will acess the tableNode.view

 override func viewDidLoad() {
  super.viewDidLoad()
  node.view.separatorStyle = .none
 }

I. Create Live Update on Component

In this part, we will perform a live update component on wishlist refer to product card expected wishlist could toggle on and off.

1. Open start/ProductCardWishlistNode.
2. Add action to activeNode and inactiveNode.

 activeNode.addTarget(self, action: #selector(changeWishlistState), forControlEvents: .touchUpInside)
 inactiveNode.addTarget(self, action: #selector(changeWishlistState), forControlEvents: .touchUpInside)

3. Move to line create a new property to handle state wishlist.

 var isWishlist = false

4. Move to function changeWishlistState add toogle on and toogle off for wishlist

 @objc func changeWishlistState() {
  // change the state vice versa
  isWishlist = !isWishlist
  setNeedsLayout()
 }

by calling setNeedsLayout() we trigger the layoutSpecThatFits to layout again. 5. Move to layoutSpecThatFits this function will return an active node because we want to toggle on/off the wishlist so that we will add.

 var child: ASImageNode

 if isWishlist {
  child = activeNode
 } else {
  child = inactiveNode
 }

 let wishlistInset = ASInsetLayoutSpec(
  insets: UIEdgeInsets(top: 2, left: 2, bottom: 2, right: 2),
  child: child
 )

6. Build and run

In this part, you can see that our lists of product cards are working fine. You can toggle the wishlist, but we have an inset issue from our product cards, so the challenge is to fixing the card inset.

• Clue: background and insets
• Cheat: you can checkout branch BeautyProductCard.

Session 4 - Usage Comparison with UIKit

In this session, we will compare with the usage of UIKit for the same UI component, which is Wish List Product Card, from the implementation and performance perspective.

Code Implementation

In UIKit, we usually use Auto Layout and managing Constraints to dynamically calculate the size and position of all the views. Sometimes it can be cumbersome to manage the Constraints if we had a lot of UI components, and these components need to be optionally placed on the view hierarchy. In this example, we use Constraints to manage UI components' size and position.

1. Open folder group named Session 4 - UIKit Way

We already created an example of UIKit implementation for Wish List Product Card. The view itself located in the InterfaceBuilder folder group, and we use XIB to construct it. Also, we had created a separated sub-component for the Rating View in the Components folder group to make it easy to manage.

2. Look into ProductCardWishlistTableViewCell.xib implementation

Next, open the ProductCardWishlistTableViewCell.xib file. We declared this UI component as UITableViewCell because we want to put it on UITableView. If you dig deeper into the child-views, you can see these components heavily-dependent on Constraints to manage its size and position.

With implementation like this, how to hide the view components that not need to be shown in a certain condition? To achieve that, usually, we can manage Constraints by:

• Managing it's constant property
• Managing it's isActive state

3. Open ProductCardWishlistTableViewCell.swift implementation

In this file, we already implement the code for us. We see that we have Constraint Outlets section. We will heavily depend on that.

4. Managing Shop Badge Image

In the current implementation, to change the Shop Badge image, we can change the shopBadgeImage.image property to the preferred image. But for managing the hidden state, we still only change the shopBadgeImage.isHidden property. If you run this code, this implementation only hiding the view itself and leaving blank space on it.

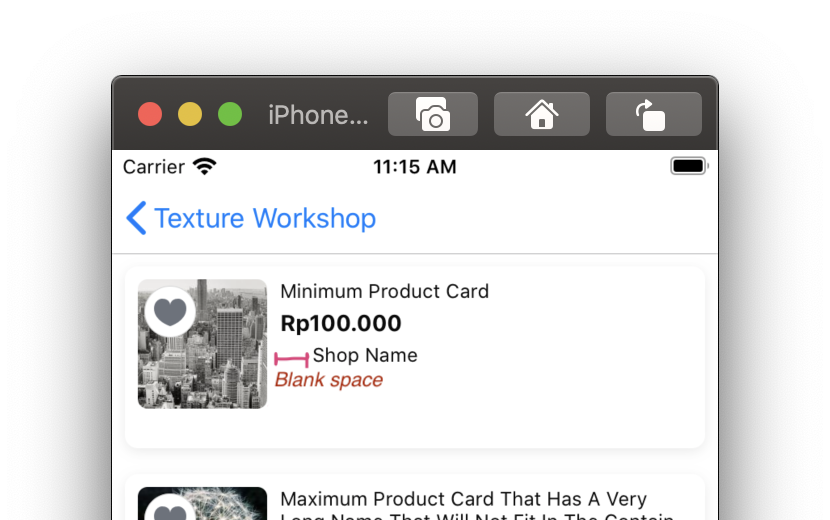

But, if we want to hide the view and also remove the blank space, how to do that?

In the refreshUi() method, you can see the switch case section for shop type. In each case, you can try to enable: showShopBadge(with:) or hideShopBadge() code and make the rest disabled by commenting them out. After that, let's try to run it.

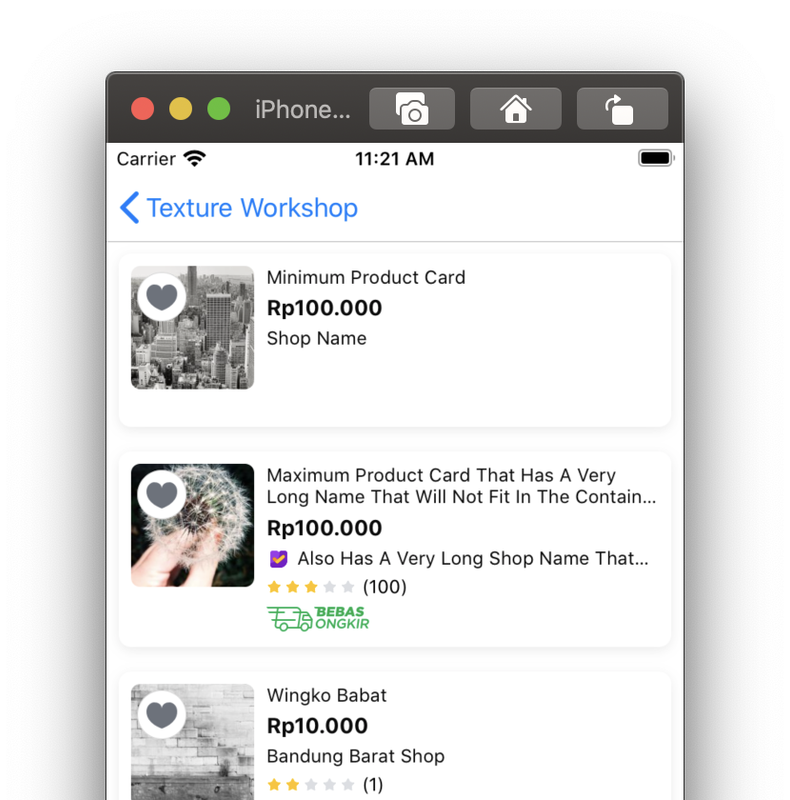

You can see, the new implementation can make the Shop Badge image hidden and eliminate the blank space. If you see the showShopBadge(with:) and hideShopBadge() code, we managing constant property of shopBadgeWidthConstraint and shopBadgeGap Constraints to hide the blank space.

By this implementation, the sizing can be wrong, which can be caused by human error if we need to change the view size in the XIB but we forget to change in the .swift too. This error can be minimized if we implementing full UI implementation programmatically without using XIB.

5. Managing Rating and "Bebas Ongkir" View State

If we see the Managing Shop Badge Image implementation, the implementation looks simple. But it can be otherwise if we need to handle multiple Views' state.

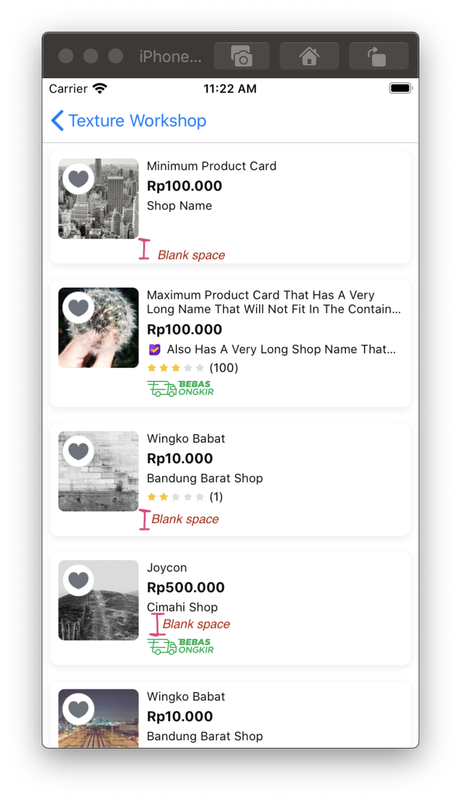

We have already run the previous implementation. If we look at the screen, we can see there's blank space too while hiding the Rating and Bebas Ongkir view.

To fix that we can see in the ProductCardWishlistTableViewCell.swift file, on the refreshUI() method, there's a section called #2 Extra Cases: Hiding both rating bar and free shipping.

Below that section, we need to disable the codes that have commented on it by comment it out. Also, we need to enable other codes below of previous code, which has commented on it too, by uncommenting it. Try to run the code.

As we can see, now the UI can be shown properly by removing blanks space if the Rating and/or Free Shipping image was hidden. If you see the codes that you enable by uncommenting-out before, we heavily managing the Constraints state there. We need to turn-off the un-needed Constraints first and enable what we need. If you wrongly manage it, the Constraints can be broken and the UI can be glitched because the OS will attempt to fix that broken Constraints and sometimes it fixed in the wrong way.

Imagine if we had many View components that need to be dynamically shown based on a certain state.

6. UIStackView

In some years ago, Apple introduced UIStackView that we can use to easily manage the View components state. If we hide a view in the stack, UIStackView will automatically manage for removing blank space of that view.

But in some conditions, it can be painful to control UIStackView if we had deep-nested UIStackView and some child-view have a different size than the other. Also for spacing between each element, it should be of the same size. For handling that, usually we need to use dummy UIView that acts as spacer.

Performance

As we know, Texture has the benefit of its UI Calculation because it is done in the background thread, contrary to UIKit that the calculation is done in the main thread.

We already made a video showing the performance of both, that shown in FPS metrics. In that video, we showing the implementation of iPhone 5 with iOS 9. In that video, it clearly shows that UIKit implementation have performance drop. It has an average of 30++ fps compared to Texture that has an average of 50++ fps.

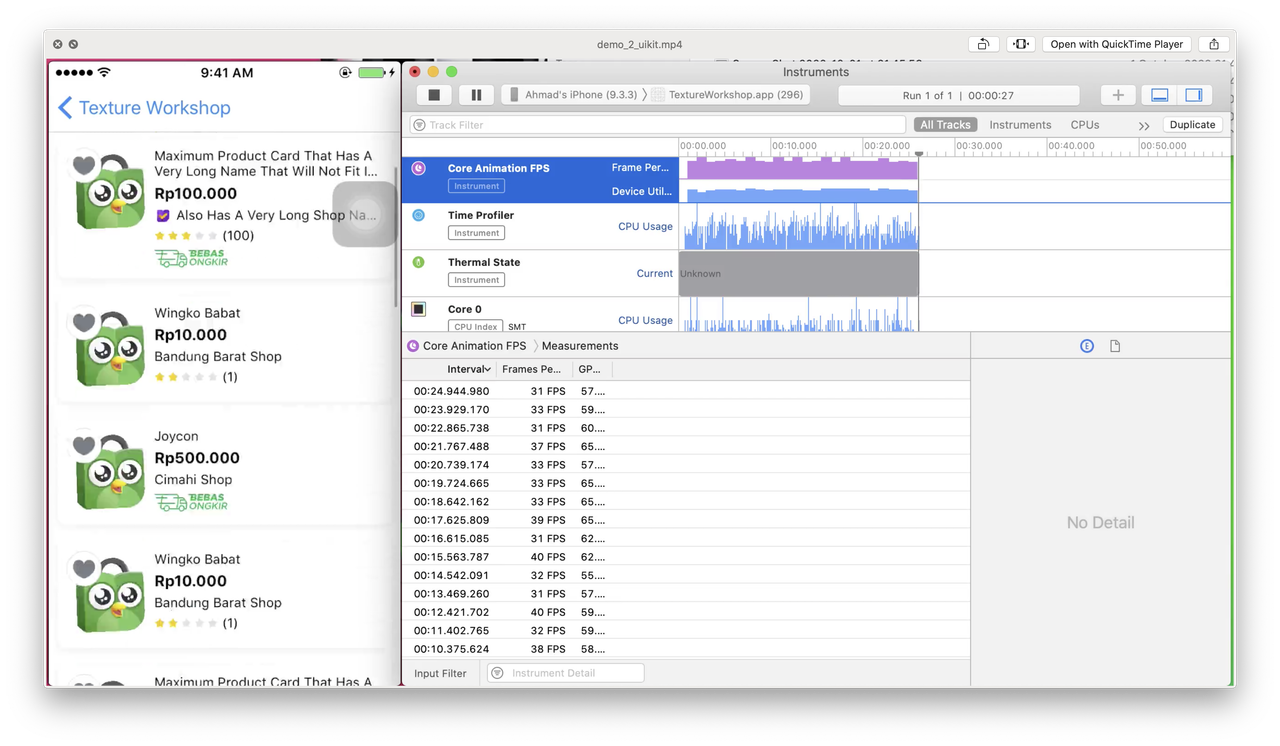

UIKit Implementation

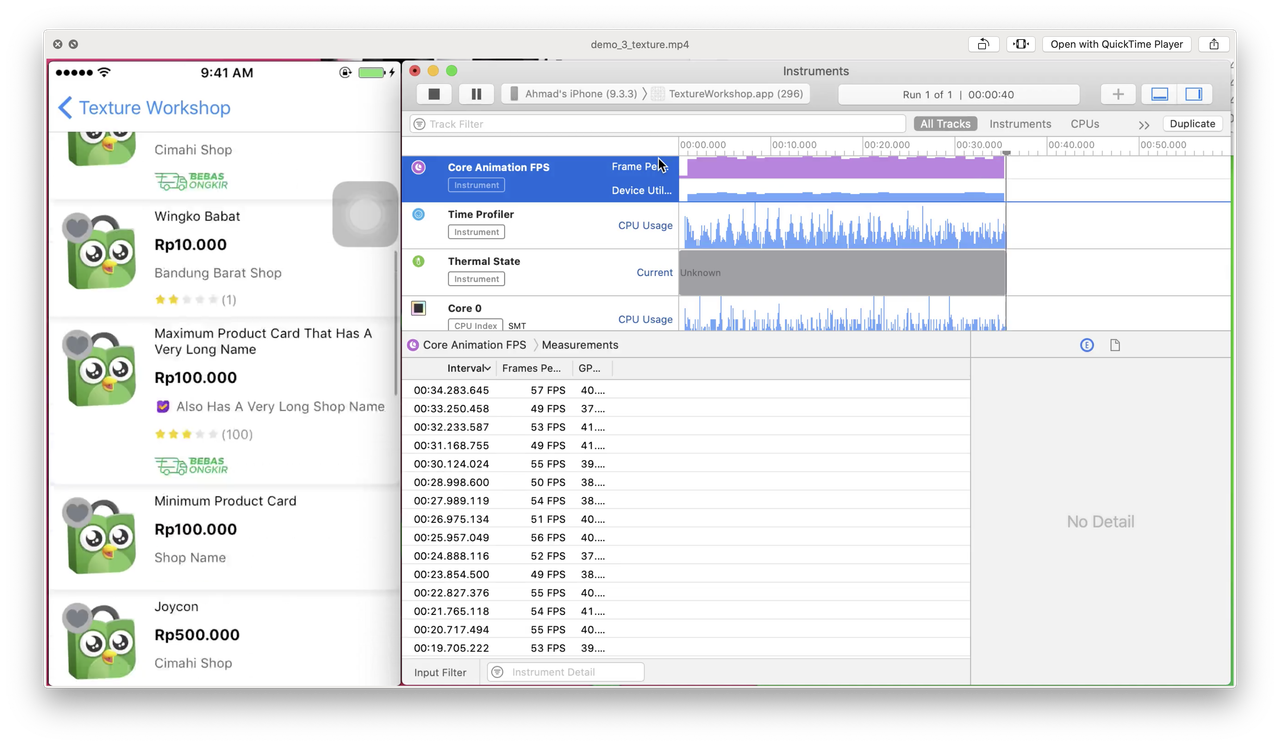

Texture Implementation

We can improve the UIKit implementation by implementing shadowPath for showing the shadow. Also, we already made a video showing the performance while using shadowPath. The FPS increased to average 40++ fps, but still can't on par with Texture.

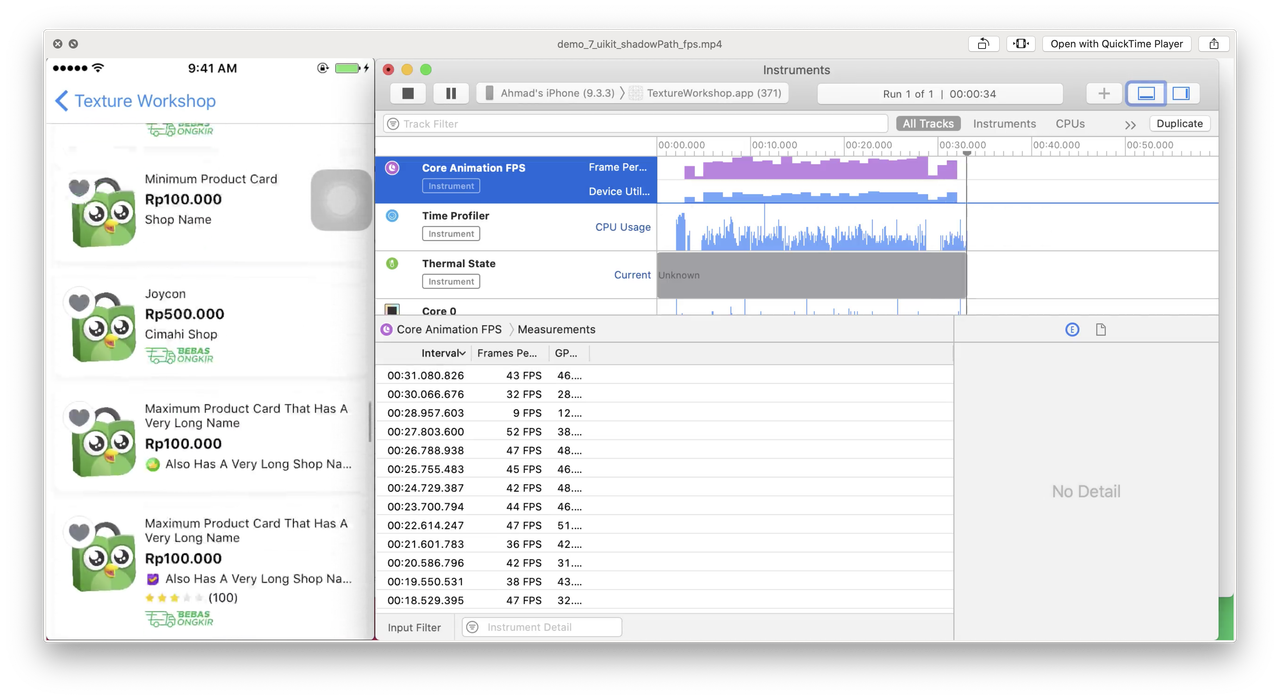

UIKit with shadowPath Implementation

Supplementary Files Link - Performance Demo Video

https://bit.ly/twOct2020Supplementary

Session 5 - Future

So far we talk about past and present, and now this time we will talk about future. We've talk about the advantages of using Texture, and what make we more confident to use Texture is by looking at some big companies like Pinterest and Telegram are using Texture in their iOS apps.

All of our workshop session show lot of benefit of using Texture, but if you check at the syntax of Texture, it still have lot of code and not "declarative" like SwiftUI. For SwiftUI, we can't used it yet on our main app because we still need to support iOS < 13, and SwiftUI is "a bit" buggy on iOS 13 as well. This is how our Texture layout code looks like:

let vStack = ASStackLayoutSpec(
	direction: .vertical,
	spacing: 16,
	justifyContent: .start,
	alignItems: .start,
	children: [tokopediaText, tokopediaButtonNode]
)

return ASStackLayoutSpec(
	direction: .horizontal,
	spacing: 16,
	justifyContent: .start,
	alignItems: .start,
	children: [vStack, goBtnNode]
)

Compare to SwiftUI code, the Texture code still look much more code than the SwiftUI one.

HStack {
	VStack {
		Text("Hello World")
		Button("Tokopedia") {}
	}
	Button("Go!") {}
}

That's where the TextureSwiftSupport shines. This library can made your Texture layouting code more like SwiftUI code by leveraging function builder swift feature that introduced in Swift version 5.1. That texture code can be converted to SwiftUI like this:

LayoutSpec {
	HStackLayout(spacing: 16) {
		tokopediaText
		tokopediaButtonNode
	}
	goBtnNode
}

And by the way, if you follow the Tokopedia iOS hotest news in early October, we've launch our first Widget! Built exclusively using SwiftUI. and our devs said that learning Texture make it easier for them to learn SwiftUI!

For final word, this is our quote of the day: One step closer to learn SwiftUI but with UIKit foundation in a simpler way
